PERKINS Endüstriyel Motorlar

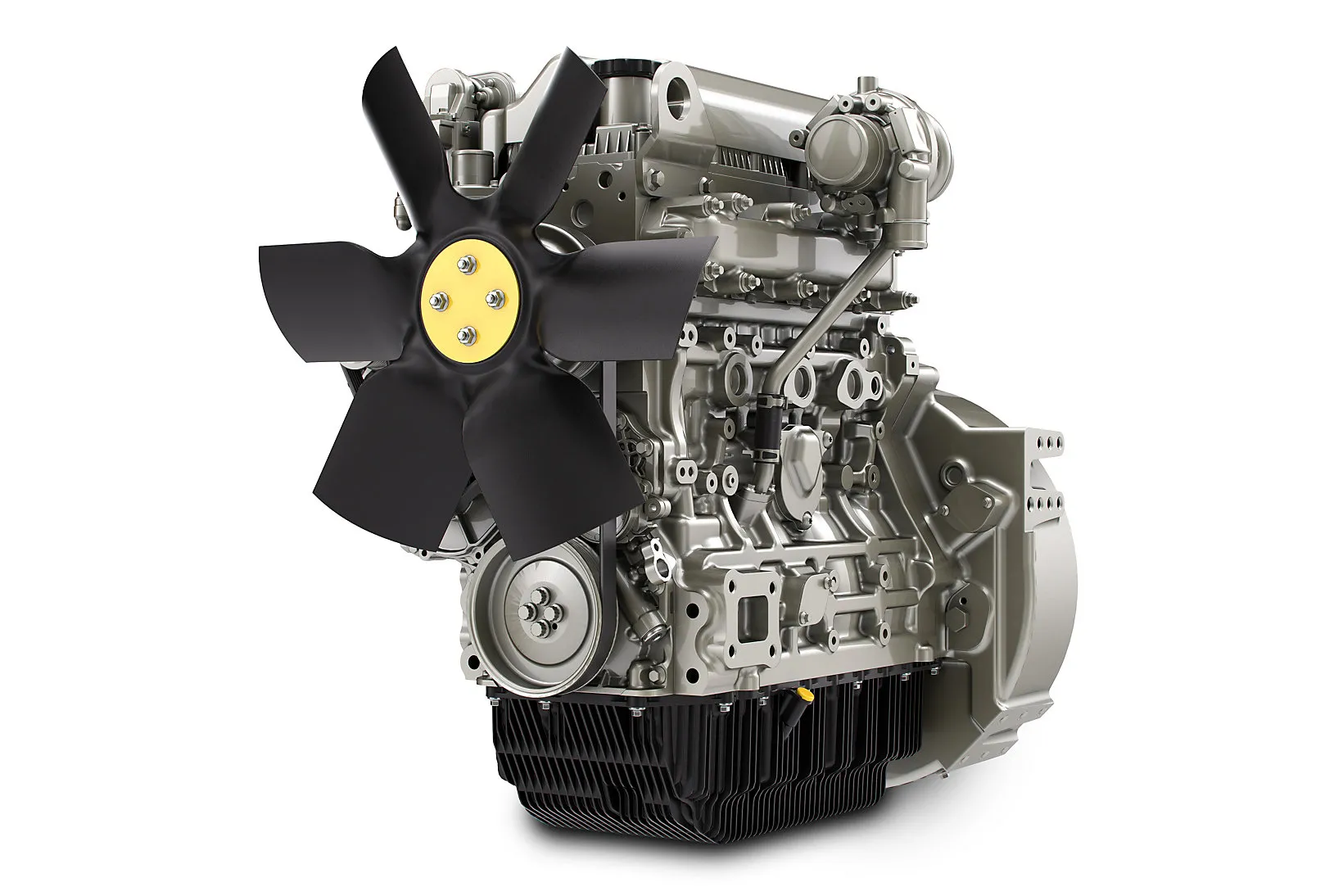

904D-E28T

Maksimum Güç

55 kW
Maksimum Tork

300 Nm @ 1600 rpm
Emisyonlar

UN ECE R96 Stage IIIA, Brazil MAR-1

Genel Bakış

The 904 Series engines offer a compact power solution for off-highway applications in construction, agriculture and industrial.For our customers these compact, 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.Reliability and easy service access are integral to the design of the engines. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

904D-E28T Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  55 kW
- Maksimum Tork

  300 Nm @ 1600 rpm
- Anma Hızı

  2200 - 2400 rpm
- Minimum Güç

  55 kW
Emisyon Standartları
- Emisyonlar

  UN ECE R96 Stage IIIA, Brazil MAR-1
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  90 mm
- Piston Hareket Mesafesi

  110 mm
- Silindir Hacmi

  2.8 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  633 mm
- Genişlik

  538 mm
- Yükseklik

  786 mm
- Kuru Ağırlık

  320 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Elektrik ve Elektronik
- 12V system
- Data interface via CANbus J1939
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Volan ve Volan Muhafazası
- SAE3 or SAE4 flywheel housing
- Wide choice of interfaces for common transmissions and hydraulic pumps
Yakıt Sistemi
- Electronic high pressure common rail
- Fuel filter - chassis mounted
- Water sensor included - early warning for operator
Genel
- Cold-start capable with standard equipment to -20°C
- Supplied painted or lacquered
Yağlama Sistemi
- Oil filters. Mounting options available on either side of the engine
- Dipsticks. Choice of position and length
- Oil fillers. Multiple locations on engine to allow for choice of service access
- High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes
- Lubricating oil filters and breathers
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available

Özellİklere Genel Bakış

The fuel consumption is optimised to match the operating cycles of a wide range of off-highway machines. No additional fluids or additives are required which lowers operating costs and operator training.

Hydraulic tappets, multi-vee belts and long service intervals enable low cost maintenance

The engine has been designed using the latest predictive engineering methods, combined with an extensive field validation program to ensure reliable power in the toughest off-highway conditions.

Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes, the same tested and validated components, and the same stringent quality controls wherever your engines are manufactured.

A modular engine concept allows OEMs to design one engine installation for many different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces.
