PERKINS Endüstriyel Motorlar

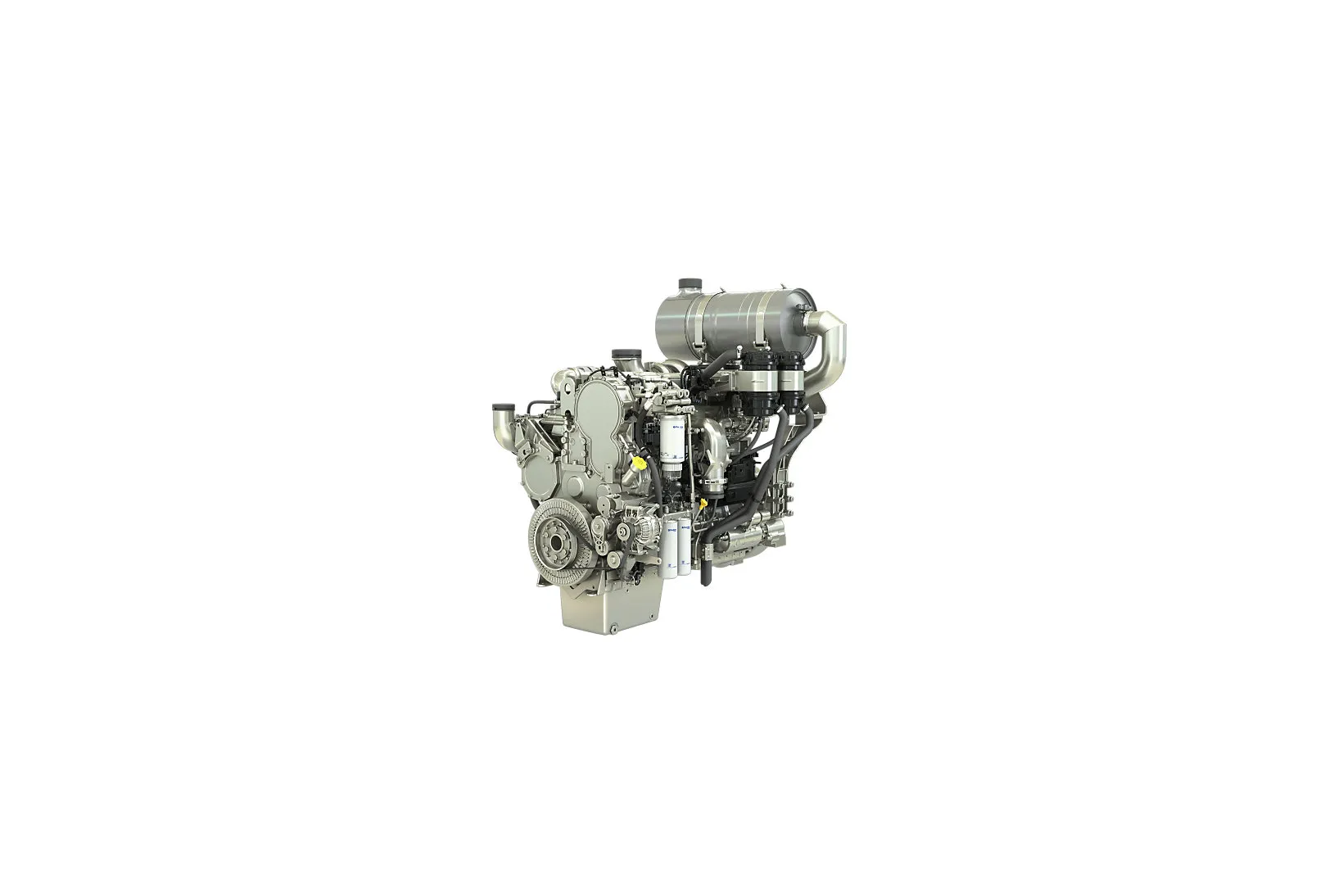

2806J-E18TTA

Maksimum Güç

597 kW
Maksimum Tork

3710 Nm @ 1300 rpm
Emisyonlar

EU Stage V, U.S. EPA Tier 4 Final

Genel Bakış

The Perkins® 2806J-E18TTA is a series turbocharged, air-to-air aftercooled, industrial engine, capable of meeting EU Stage V and U.S. EPA Tier 4 Final emission standards using a single-can diesel oxidation catalyst (DOC).

2806J-E18TTA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  597 kW
- Maksimum Tork

  3710 Nm @ 1300 rpm
- Anma Hızı

  1800 rpm
- Minimum Güç

  576 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA Tier 4 Final
Genel
- Silindir Sayısı

  6 vertical in-line
- Silindir Hacmi

  18.1 l
- Emme Tipi

  Series twin turbocharged aftercooled
- Silindir Çapı

  145 mm
- Piston Hareket Mesafesi

  183 mm
- Yanma Sistemi

  Direct injection (MEUI)
- Sıkıştırma Oranı

  16.0:1
- Egzoz Son İşlem Sistemi

  DOC
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1545 mm
- Genişlik

  1141 mm
- Yükseklik

  1334 mm
- Kuru Ağırlık

  1758 kg
- Wet Weight

  1790 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.

Özellİklere Genel Bakış

2806J-E18TTA engines with ratings above 560 kW (755 hp) have excellent power density that utilise a compact, single-can diesel oxidation catalyst (DOC) aftertreatment system. The DOC is a maintenance-free, passive aftertreatment solution that eliminates the need for thermal management.

World-class manufacturing capability and processes coupled with proven core engine designs provide reliability, quiet operation, and many hours of productive life.

Fully configurable engine with compact simplified aftertreatment offers numerous options while minimising package size and enables commonisation across a wide range of applications. Engine and remote-mounted aftertreatment configurations offer users flexibility, while low heat rejection allows for optimised cooling packages.
