PERKINS Endüstriyel Motorlar

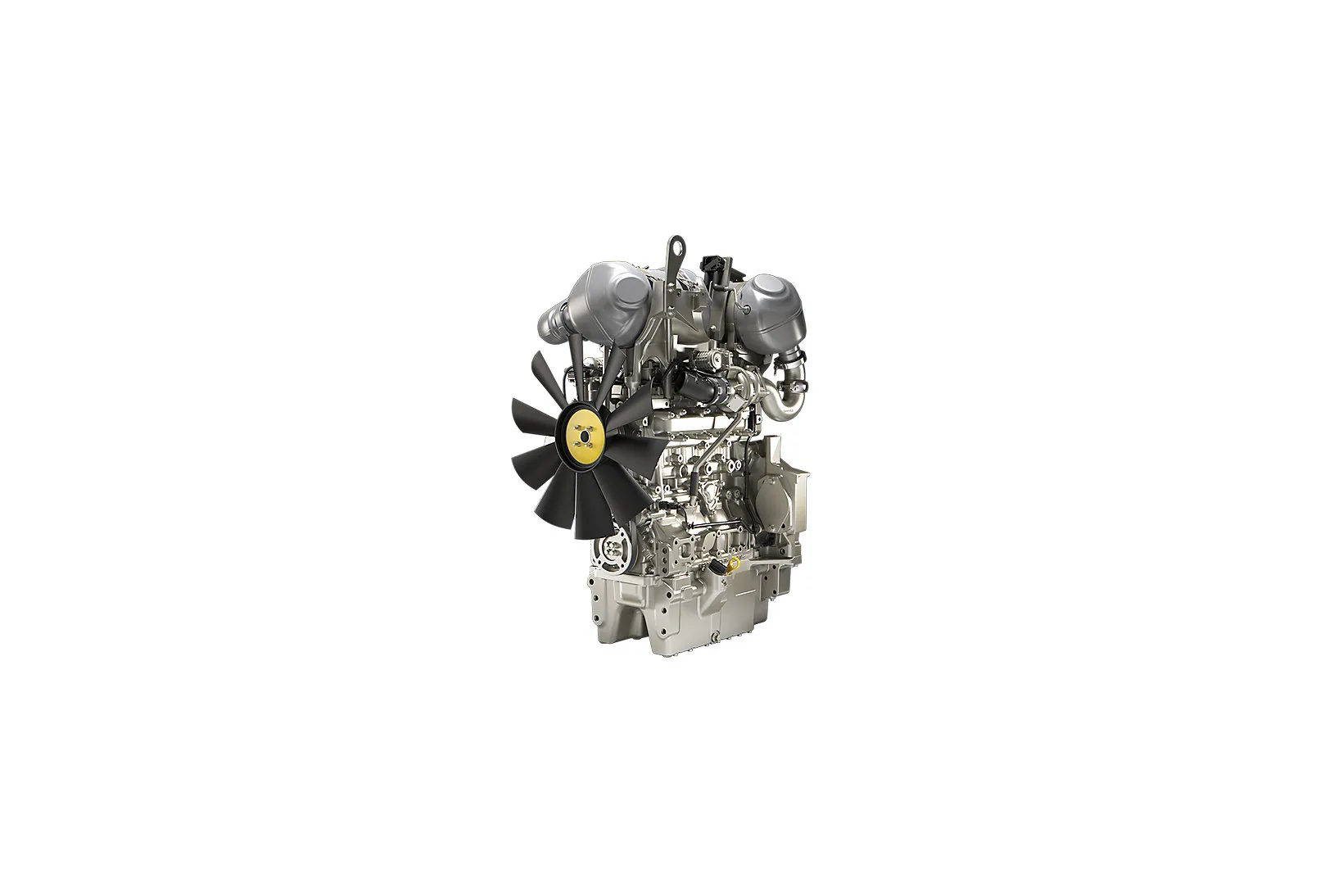

904J-E36TA for Tractors

Maksimum Güç

100 kW
Maksimum Tork

530 Nm @ 1500 rpm
Emisyonlar

EU Stage V, U.S. EPA & CARB Tier 4 Final, Japan MLIT Step 4

Genel Bakış

The 904 Series, 3.6 engine offers the perfect solution for frameless agricultural tractors - compact, powerful and quiet. Compact packaging including structural capability for front bolster and rear transmission, including twin balancers for operator comfort and rigid mounting; the 3.6 is the cornerstone of your tractor.

Our tight engine packaging combined with our compact aftertreatment is able to be mounted under the tractor bonnet. This enables tight turning circles and uninterrupted sight lines with no A-Pillar or battery box interference; the 904 Series enables less administration and easy logistics for the original equipment manufacturer.

Powerful, with excellent performance in power, peak and low speed torque, fuel consumption and transient response; the 3.6 has all the performance required including for downsizing from larger displacement engines for your tractor and your customers. A naturally quiet engine by design, your customers will be impressed with the noise and sound quality of the engine, making the 3.6 a natural choice for tractors used around livestock and noise sensitive areas.

Meets EU Stage V, U.S. EPA Tier 4 Final and Japan MLIT Step 4.

904J-E36TA for Tractors Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  100 kW
- Maksimum Tork

  530 Nm @ 1500 rpm
- Anma Hızı

  2000-2400 rpm
- Minimum Güç

  55 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA & CARB Tier 4 Final, Japan MLIT Step 4
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  98 mm
- Piston Hareket Mesafesi

  120 mm
- Silindir Hacmi

  3.6 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF or DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  681 mm
- Genişlik

  564 mm
- Yükseklik

  885 mm
- Kuru Ağırlık

  450 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Elektrik ve Elektronik
- Wide choice of interfaces for common transmissions
- 12V systems
- Data interface via CANbus J1939
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Yakıt Sistemi
- Electronic high pressure common rail
- Fuel filter - chassis mounted
- Water sensor included - early warning for operator
Genel
- Structual sump including twin balancers for front bolster mounting
- Cold-start capable with standard equipment to -25°C
- Supplied painted or lacquered
- Ag backplate for transmission mounting
Yağlama Sistemi
- Oil filters. Mounting options available on either side of the engine, plus remote
- Dipsticks. Choice of position and length
- Oil fillers. Multiple locations on engine to allow for choice of service access
- High incline sump. 25° continuous in all directions
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available
Egzoz Son İşlem Sistemi Equipment
- Egzoz Son İşlem Sistemi mounted on engine as standard, remote available
- For engine power ratings above 56 kW, Selective Catalytic Reduction (SCR) will also be added

Özellİklere Genel Bakış

Fuel consumption is optimised to match the operating cycles of a wide range of agricultural tractors.Hydraulic tappets, multi-vee belts and 500 hour service intervals enable low cost maintenance.

The engine has been designed using the latest predictive engineering methods, combined with an extensive field validation program to ensure reliable power in the toughest off-highway conditions.Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes, the same tested and validated components, and the same stringent quality controls wherever your engines are manufactured.

A modular engine concept allows OEMs to design one tractor for different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces.

We provide one-year warranties for constant speed engines and two-year warranties for variable speed models, as standard. These are supported by Perkins Platinum Protection that can be bought additionally.Discover more: www.perkins.com ‘Parts and Service’.

Perkins recognise that the customer relationship is important to machine manufacturers and we can offer a range of flexible solutions to help provide appropriate support, either to the OEM’s network or directly to the machine customer.Perkins information systems enable our distributors to quickly diagnose engine faults and identify the right parts.The Perkins logistics operation is able to dispatch more than 45,000 different parts from stock, reaching the customer within 24 hours.To find your local distributor: www.perkins.com ‘Our Network’.
