PERKINS Endüstriyel Motorlar

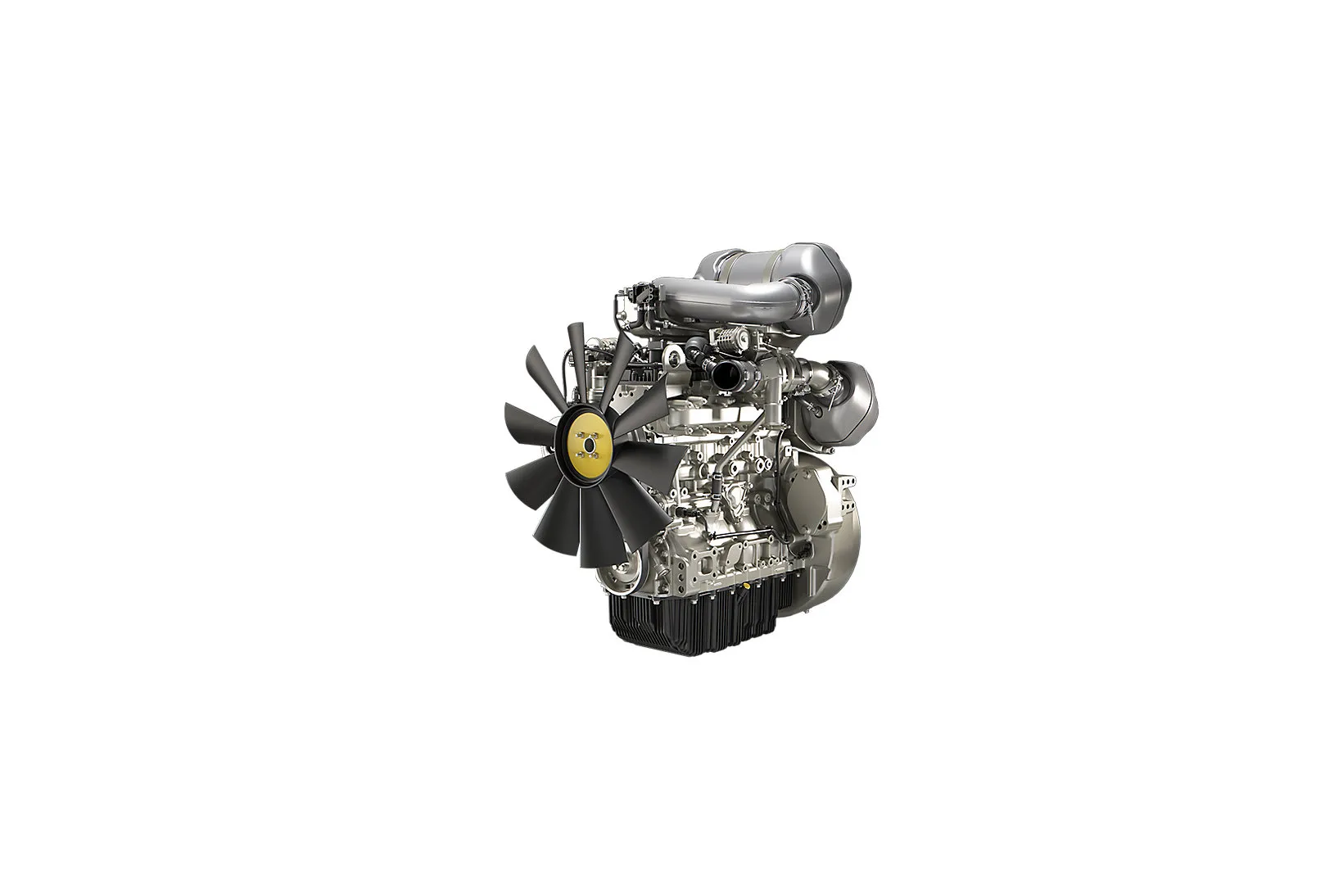

904J-E36TA

Maksimum Güç

106 kW
Maksimum Tork

566 Nm @ 1500 rpm
Emisyonlar

EU Stage V, U.S. EPA Tier 4 Final, Japan 2014

Genel Bakış

The Perkins® 904 engines offer a compact power solution for off-highway applications in construction, agriculture and industrial. These 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.

There are a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

904J-E36TA Ürün Özellikleri

Product Specifications for 904J-E36TA
cloud_download Download print Print
Collapse all
Güç Değeri
- Maksimum Güç

  106 kW
- Maksimum Tork

  566 Nm @ 1500 rpm
- Anma Hızı

  2000-2400 rpm
- Minimum Güç

  55 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA Tier 4 Final, Japan 2014
Genel
- Silindir Sayısı

  4
- Silindir Hacmi

  3.6 l
- Emme Tipi

  Turbocharged aftercooled (TA)
- Silindir Çapı

  98 mm
- Piston Hareket Mesafesi

  120 mm
- Yanma Sistemi

  Direct injection
- Sıkıştırma Oranı

  17.0:1
- Egzoz Son İşlem Sistemi

  DOC+DPF or DOC+DPF+SCR
- Toplam Yağ Kapasitesi

  11.6 l
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  667 mm
- Genişlik

  564 mm
- Yükseklik

  787 mm
- Kuru Ağırlık

  381 kg
- Wet Weight

  421 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.

Özellİklere Genel Bakış

These engines have been designed using predictive engineering methods, with extensive field validation to ensure reliable power in the toughest conditions. Worldwide facilities employ efficient processes, tested and validated components, and stringent quality controls wherever your engines are manufactured.

Fuel consumption is optimised to match the operating cycles of a wide range of off-highway applications. One-year warranties for constant speed engines and two-year warranties for variable speed models, as standard. For further peace of mind, there is also the option to extend the warranty period through Perkins® Platinum Protection.

A modular engine concept allows OEMs to design one engine installation for different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces.

A range of flexible solutions available to help provide appropriate support to an OEM’s network or directly to the machine customer. The Perkins logistics operation have the ablility to dispatch parts from stock, reaching the customer within 24 hours helping to maximise the productive life of your engine.
