PERKINS Endüstriyel Motorlar

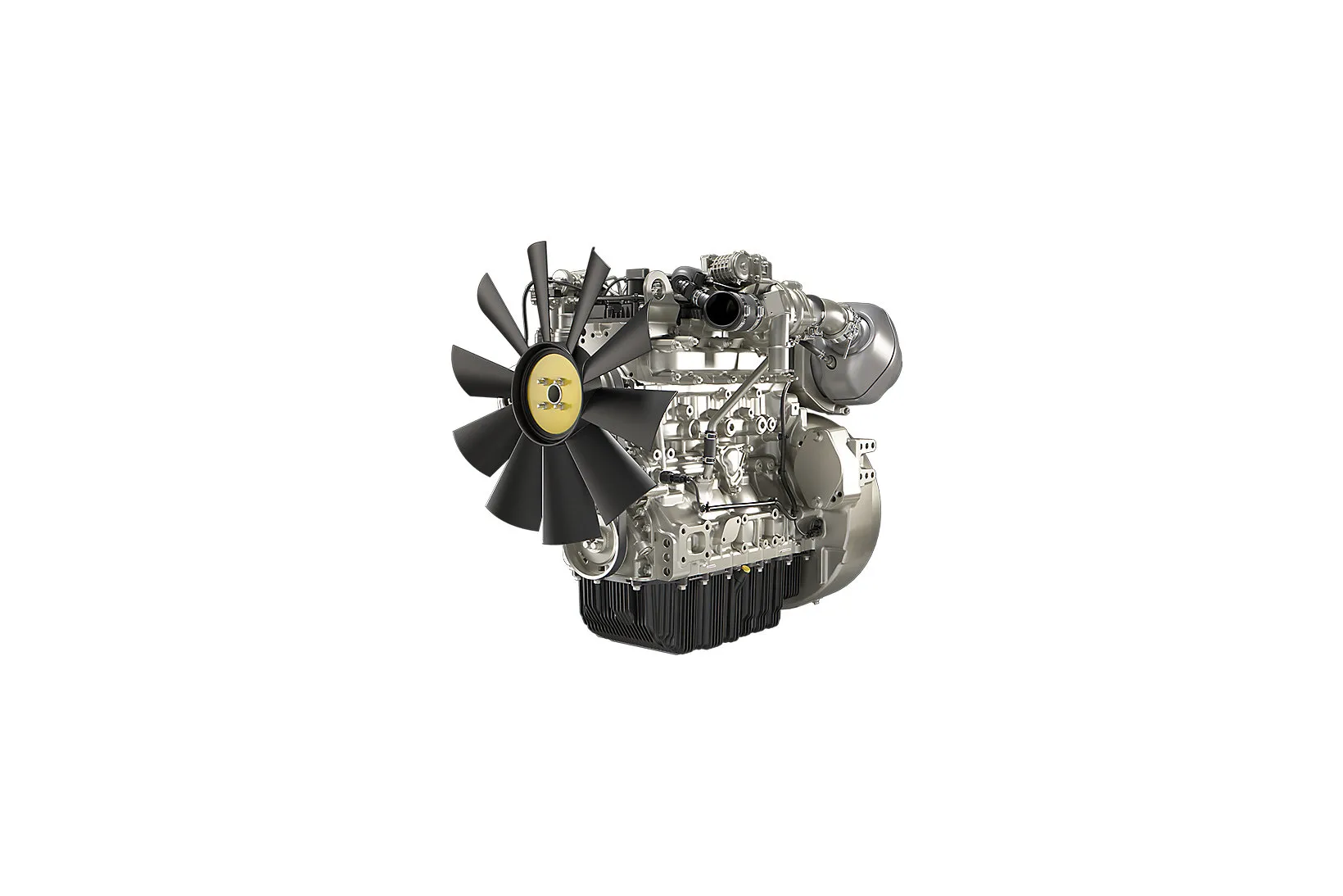

904EA-E36TA

Maksimum Güç

82 kW
Maksimum Tork

450 Nm @ 1500 rpm
Emisyonlar

China NR IV

Genel Bakış

The 904 Series engines offer a compact power solution for off-highway applications in construction and industrial.

For our customers these compact, 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.

Reliability and easy service access are integral to the design of the engines. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

904EA-E36TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  82 kW
- Maksimum Tork

  450 Nm @ 1500 rpm
- Anma Hızı

  2200 rpm
- Minimum Güç

  74 kW
Emisyon Standartları
- Emisyonlar

  China NR IV
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  98 mm
- Piston Hareket Mesafesi

  120 mm
- Silindir Hacmi

  3.6 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  667 mm
- Genişlik

  564 mm
- Yükseklik

  787 mm
- Kuru Ağırlık

  380 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Elektrik ve Elektronik
- 12 or 24V systems
- Data interface via CANbus J1939
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Volan ve Volan Muhafazası
- SAE3 or SAE4 flywheel housing
- Wide choice of interfaces for common transmissions and hydraulic pumps
Yakıt Sistemi
- Electronic high pressure common rail
- Fuel filter - chassis mounted
- Water sensor included - early warning for operator
Genel
- Cold-start capable with standard equipment to -20°C
- Supplied painted or lacquered
Yağlama Sistemi
- Oil filters. Mounting options available on either side of the engine, plus remote
- Dipsticks. Choice of position and length
- Oil fillers. Multiple locations on engine to allow for choice of service access
- High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available
Egzoz Son İşlem Sistemi Equipment
- Egzoz Son İşlem Sistemi mounted on engine as standard, remote available

Özellİklere Genel Bakış

The fuel consumption is optimised to match the operating cycles of a wide range of off-highway applications.Hydraulic tappets, multi-vee belts and 500 hour service intervals enable low cost maintenance.

The engine has been designed using the latest predictive engineering methods, combined with an extensive fieldvalidation program to ensure reliable power in the toughest off-highway conditions.Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes,the same tested and validated components, and the same stringent quality controls wherever your engines aremanufactured.

A modular engine concept allows OEMs to design one engine installation for different regions. This reduces cost and development time for cooling pack, mounting, hydraulic and control interfaces

Perkins recognise that the customer relationship is important to machine manufacturers and we can offer a range of flexible solutions to help provide appropriate support, either to the OEM's network or directly to the machine customer.
