PERKINS Endüstriyel Motorlar

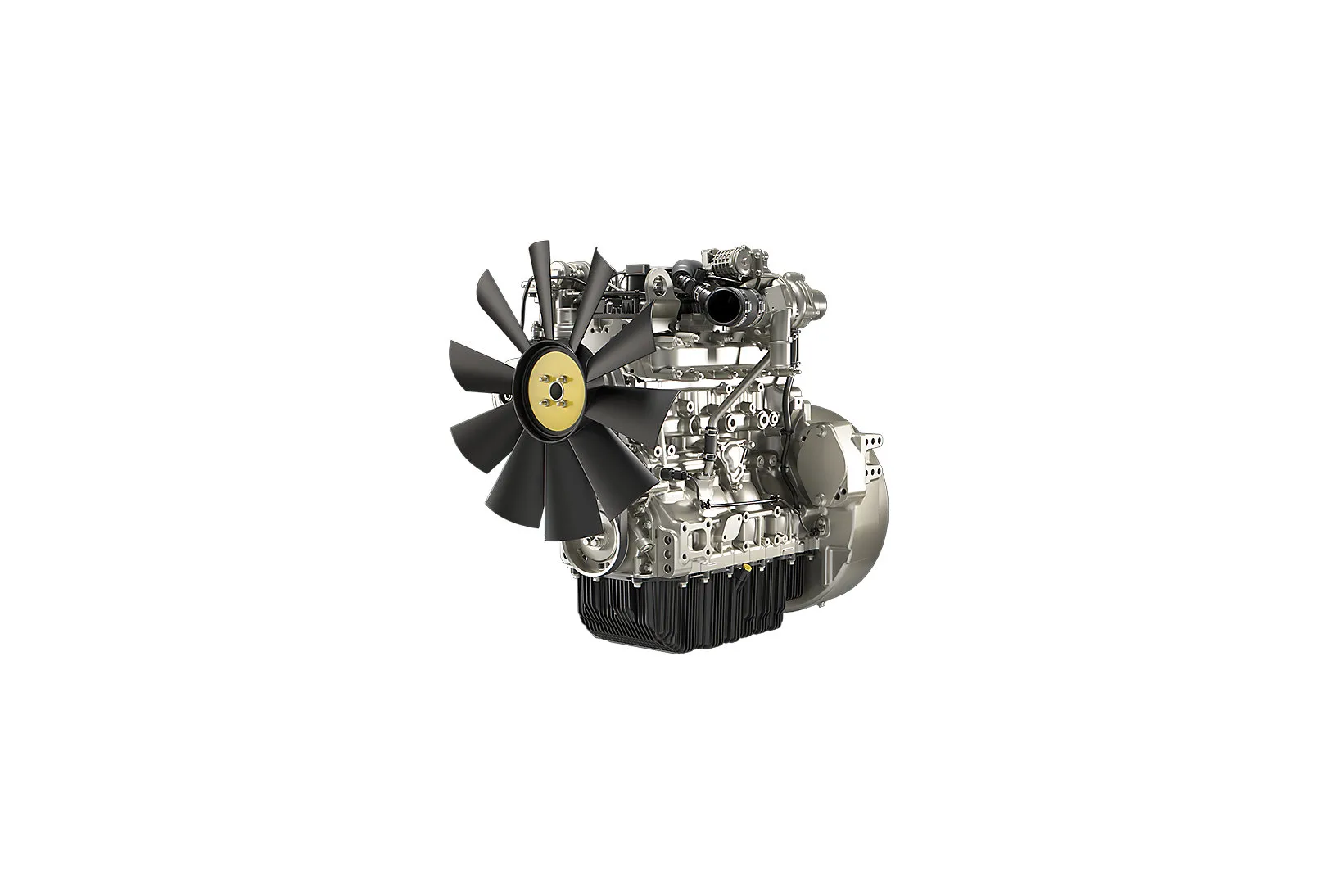

904D-E36TA

Maksimum Güç

90 kW
Maksimum Tork

500 Nm @ 1500 rpm
Emisyonlar

UN ECE R96 Stage IIIA, Brazil MAR-1

Genel Bakış

The 904 Series, 3.6 litre offers a compact power solution for off-highway machines in construction, agriculture and industrial.The technology has been chosen not only to meet emissions standards but also to provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.Reliability and easy service access are integral to the design of the 904. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

904D-E36TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  90 kW
- Maksimum Tork

  500 Nm @ 1500 rpm
- Anma Hızı

  2000 - 2400 rpm
- Minimum Güç

  55 kW
Emisyon Standartları
- Emisyonlar

  UN ECE R96 Stage IIIA, Brazil MAR-1
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  98 mm
- Piston Hareket Mesafesi

  120 mm
- Silindir Hacmi

  3.6 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  667 mm
- Genişlik

  564 mm
- Yükseklik

  787 mm
- Kuru Ağırlık

  381 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Elektrik ve Elektronik
- 12 or 24V systems
- Data interface via CANbus J1939
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Volan ve Volan Muhafazası
- SAE3 or SAE4 flywheel housing
- Wide choice of interfaces for common transmissions and hydraulic pumps
Yakıt Sistemi
- Electronic high pressure common rail
- Fuel filter - chassis mounted
- Water sensor included - early warning for operator
Genel
- Cold-start capable with standard equipment to -20°C
- Supplied painted or lacquered
Yağlama Sistemi
- Oil filters. Mounting options available on either side of the engine
- Dipsticks. Choice of position and length
- Oil fillers. Multiple locations on engine to allow for choice of service access
- High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available

Özellİklere Genel Bakış

The fuel consumption is optimised to match the operating cycles of a wide range of off-highway machines. No additional fluids or additives are required which lowers operating costs and operator training.

Hydraulic tappets, multi-vee belts and long service intervals enable low cost maintenance

The engine has been designed using the latest predictive engineering methods, combined with an extensive field validation program to ensure reliable power in the toughest off-highway conditions.

Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes, the same tested and validated components, and the same stringent quality controls wherever your engines are manufactured.

We have designed the engine using modular components allowing the engine configuration to be altered to meet different emissions standards whilst keeping the same core.This allows OEMs to design one engine installation for different global regions, reducing cost and development time for the cooling pack, mounting, hydraulics and control interfaces.
