PERKINS Endüstriyel Motorlar

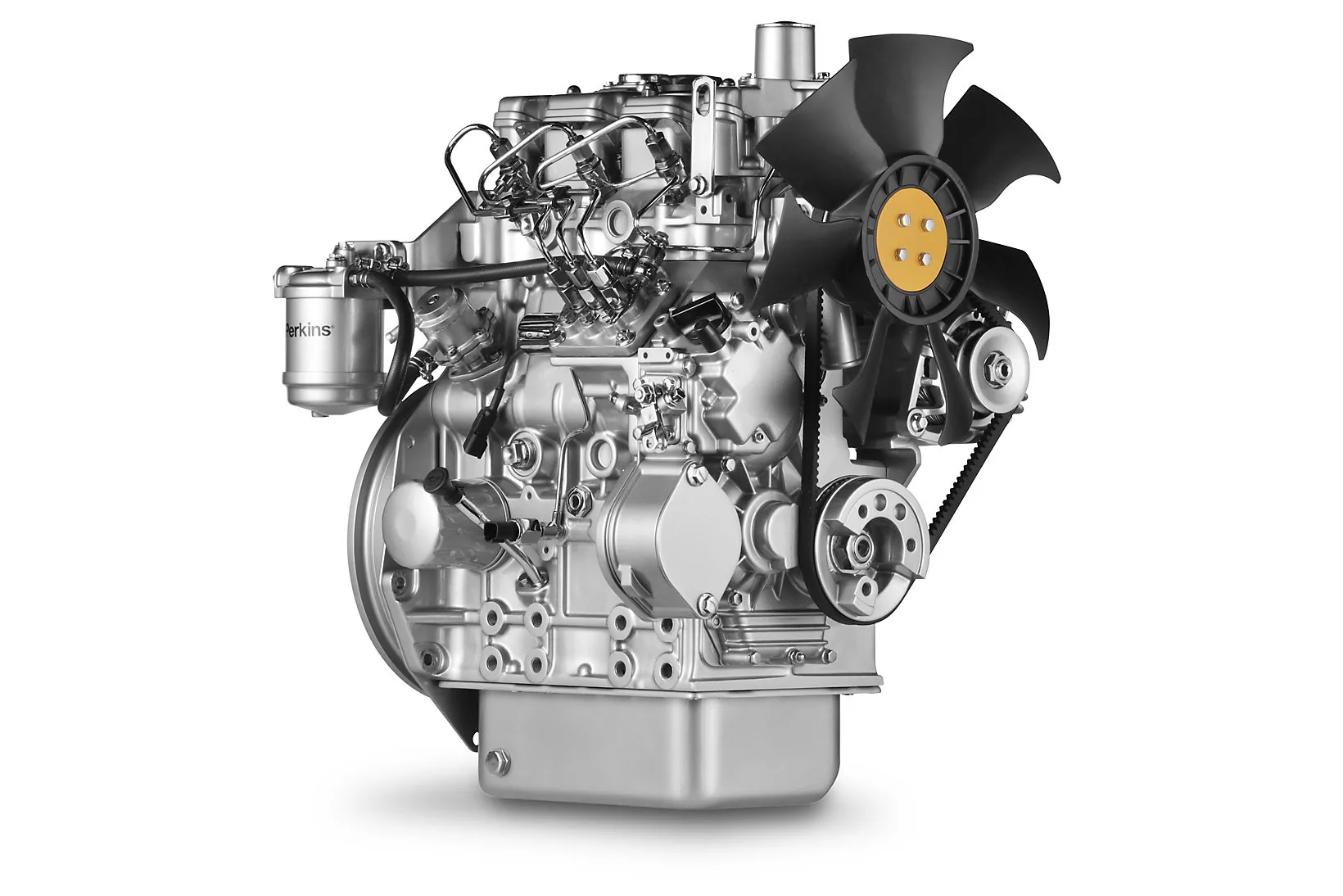

403F-15

Maksimum Güç

18.4 kW
Maksimum Tork

86 Nm @ 1800 rpm
Emisyonlar

U.S EPA Tier 4 Final

Genel Bakış

The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403F-15 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403F-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.

A practical solution for you to upgrade to the latest emissions standards with minimum machine change and development costs, and a common machine for export markets.

403F-15 Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  18.4 kW
- Maksimum Tork

  86 Nm @ 1800 rpm
- Anma Hızı

  2100 rpm
- Minimum Güç

  18.4 kW
Emisyon Standartları
- Emisyonlar

  U.S EPA Tier 4 Final
Genel
- Silindir Sayısı

  3 inline
- Çevrim

  4 stroke
- Silindir Çapı

  84 mm
- Piston Hareket Mesafesi

  90 mm
- Silindir Hacmi

  1.4 l
- Sıkıştırma Oranı

  22.5:1
- Emme Tipi

  Naturally aspirated
- Yanma Sistemi

  Indirect injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  572 mm
- Genişlik

  453 mm
- Yükseklik

  643 mm
- Kuru Ağırlık

  149 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Soğutma Sistemi
- Radiator with mounting feet available
- Belt driven coolant pump
- Coolant temperature switch
- Cooling fan
Yakıt Sistemi
- Fuel injection pump
- Split element fuel filter
Genel
- Gradeability 30° continuous
Elektrik ve Elektronik
- Alternator 12 volt, 40, 65 and 85 Amp
- Electronic controlled governing
- Starter motor 12 volt, 2.0 kW
- Glow plug starting aid
Volan ve Volan Muhafazası
- Flywheel SAE 7 1/2
- Flywheel housing SAE 4
Yağlama Sistemi
- Dipstick options available
- Lubricating oil pressure switch
- Optional Closed Circuit Breather
- Spin-on lubricating oil filter
Power Take-Off (PTO)
- SAE A PTO

Özellİklere Genel Bakış

Up to 18.4 kW (24.7 hp) from an engine envelope of 0.11 m2 (3.8 ft2) Easy installation

Product design and process improvements enhance both engine reliability and durability The introduction of a simple electronic governor system gives customers the flexibility of electronic machine integration if needed A standard two-year warranty demonstrates our confidence in durability and reliability

Approved for operation on biodiesel* concentrations of up to 20% Engine durability and reliability, the warranty offering and ease of installation combine to drive down the cost of ownership. We provide one-year warranties for constant speed engines and two-year warranties for variable speed models, as standard

With highly trained Perkins distributors in thousands of communities in over 180 countries, you are never far away from expert product knowledge, genuine parts and a range of advanced diagnostic technology for keeping your engine in peak condition
To find your local distributor: www.perkins.com/distributor
