PERKINS Endüstriyel Motorlar

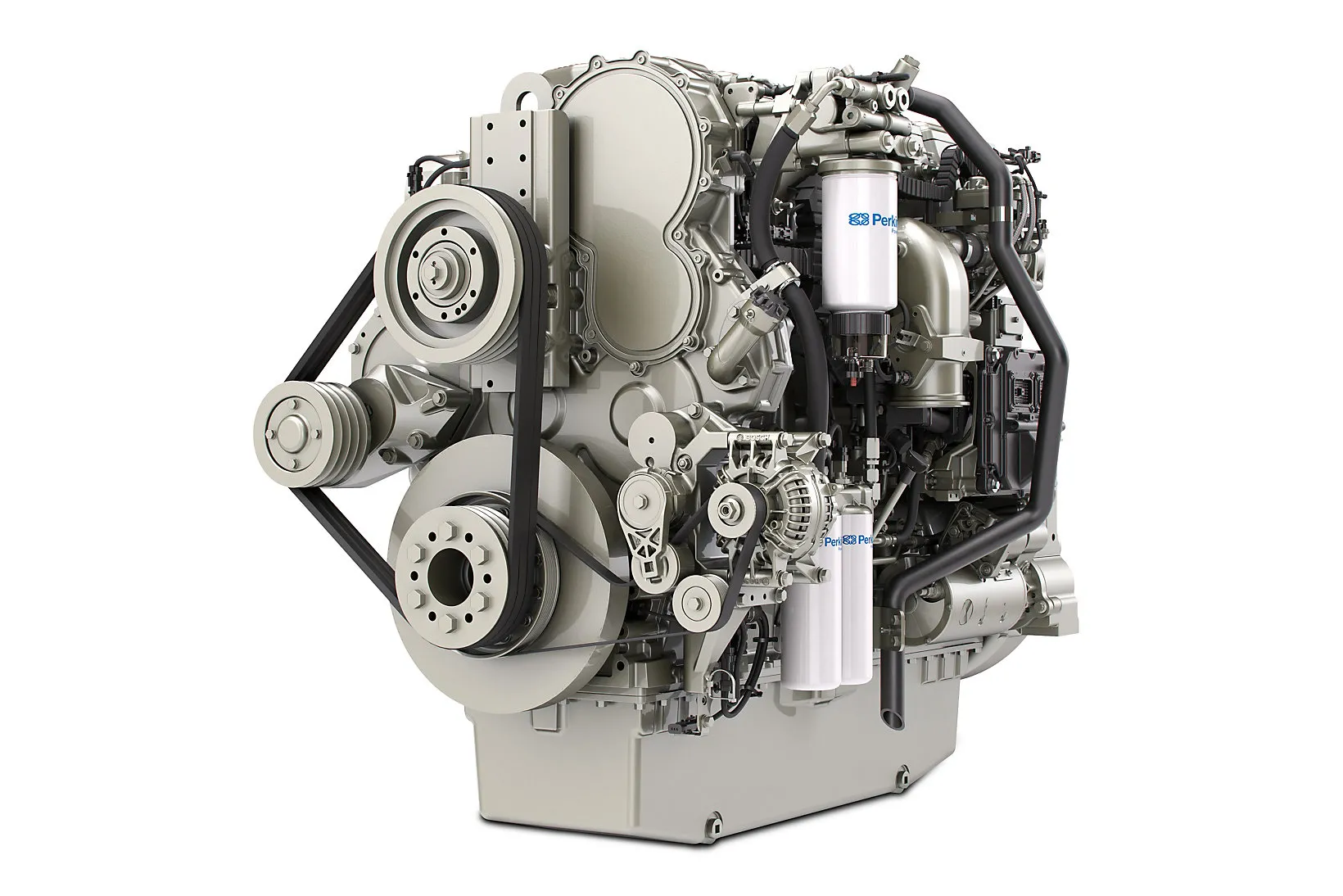

2506J-E15TA

Maksimum Güç

433 kW
Maksimum Tork

2655 Nm @ 1400 rpm
Emisyonlar

EU Stage V, U.S. EPA & CARB Tier 4 Final

Genel Bakış

The ability to power your machine line-up with one engine supplier is truly achieveable with Perkins. We have introduced a platform of 9-18 litre industrial engines that completes our market-leading industrial power range and covers 8.8-597 kW (11.8-800 hp).

2506J-E15TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  433 kW
- Maksimum Tork

  2655 Nm @ 1400 rpm
- Anma Hızı

  1800-2100 rpm
- Minimum Güç

  354 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA & CARB Tier 4 Final
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  137 mm
- Piston Hareket Mesafesi

  171 mm
- Silindir Hacmi

  15.2 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1438 mm
- Genişlik

  955 mm
- Yükseklik

  1248 mm
- Kuru Ağırlık

  1542 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Egzoz Son İşlem Sistemi Equipment
- ECU - Egzoz Son İşlem Sistemi Electronic Control Units
- SCR Auxiliaries - A range of tanks and heated lines are available
Hava Sistemi
- Turbocharged aftercooled
Elektrik ve Elektronik
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system
Soğutma Sistemi
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Vertical outlet thermostat housing, centifugal water pump
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE0 and SAE1 configurations
Yakıt Sistemi
- Industrial technology requires Ultra Low Sulphur Diesel fuel (ULSD, 15 ppm sulphur), in addition to ultra low sulphur diesel oils, for use in Tier 4 Final/Stage IV engines. These cleaner fuels and oils will help reduce ash and maintain service intervals. In addition, B20 biodiesel capability adds even greater sustainability where desired or required
- Mechanical Unit Injector fuel system, controlled electronically
Yağlama Sistemi
- Choice of sumps for different applications
- Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
- Open crankcase ventilation system with fumes disposal (optional OCV filter system)
Power Take-Off (PTO)
- Engine power can also be taken from the front of the engine on some applications
- SAE1 power take-off available with optional SAE A, SAE B and SAE C power take-off drives

Özellİklere Genel Bakış

We have designed the Perkins 2000 range with optimised fluid (DEF and Fuel) consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through a minimum 5,000 hour aftertreatment service interval and 500 hour oil change intervals. Transparent regeneration of the aftertreatment provides minimum downtime.

The Perkins 2000 range is suitable for the toughest operating conditions. Built in a world class manufacturing facility, and with proven core engine designs you can be assured of many hours of productive life. Egzoz Son İşlem Sistemi designed to perform through the whole work cycle of the engine, supporting productivity of machines in all conditions.

Features built into the 2000 Range provide opportunities to reduce the cost of installation into your machine. With a compact package size of the engine, supported by multiple options available to support optimisation for your application. Supported by our expertise of application installations, the knowledge required to improve total integration is at all times you work with Perkins. Flexibility in aftertreatment installation, including horiztonal and vertical options.
