PERKINS Endüstriyel Motorlar

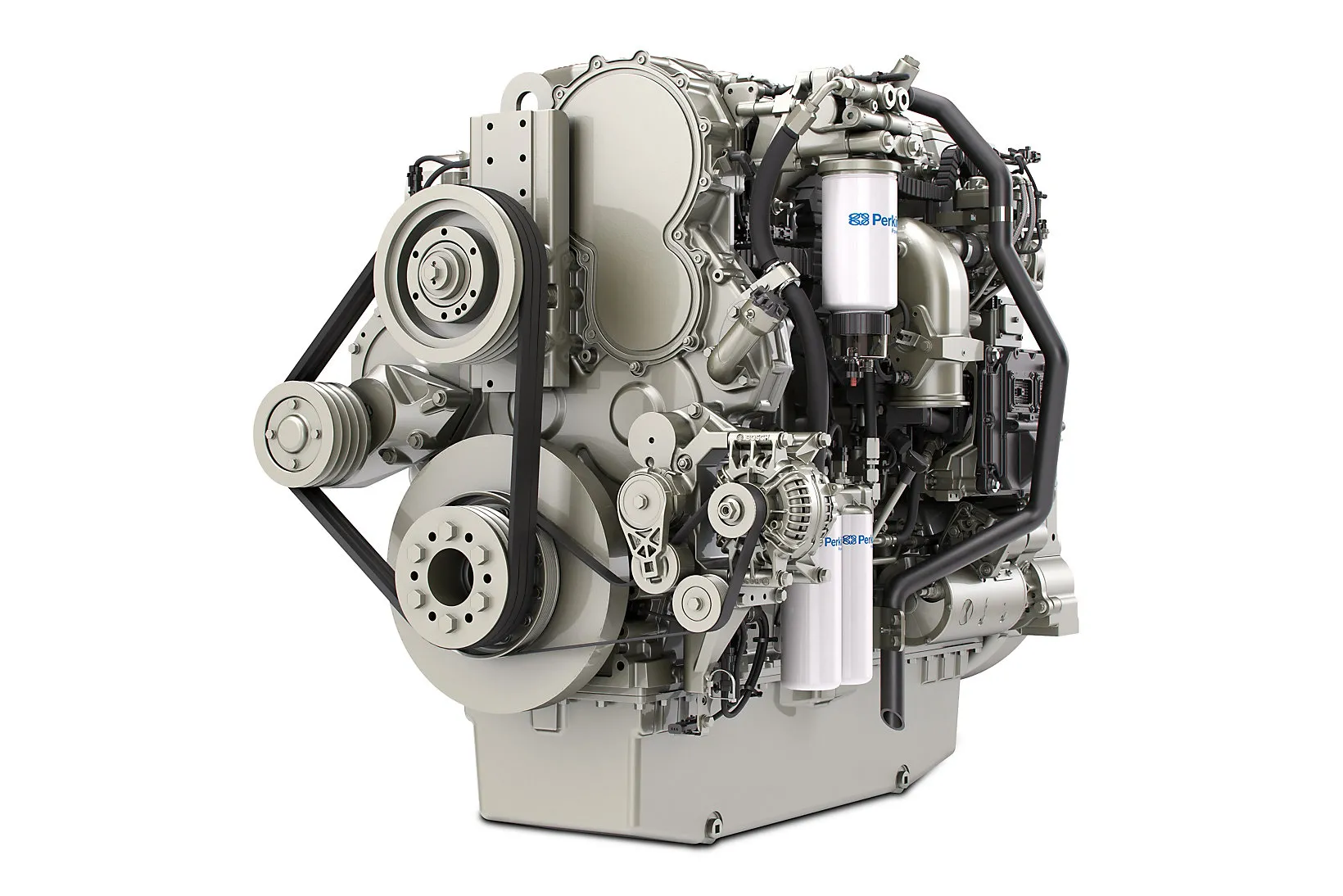

2506D-E15TA

Maksimum Güç

444 kW
Maksimum Tork

2717 Nm @ 1400 rpm
Emisyonlar

EU Stage IIIA/U.S. EPA Tier 3, China NRIII

Genel Bakış

The ability to power your machine line-up with one engine supplier is truly achieveable with Perkins. We have introduced a platform of 9-18 litre industrial engines that completes our market-leading industrial power range and covers 8.8-597 kW (11.8-800 hp).

2506D-E15TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  444 kW
- Maksimum Tork

  2717 Nm @ 1400 rpm
- Anma Hızı

  1800-2100 rpm
- Minimum Güç

  328 kW
Emisyon Standartları
- Emisyonlar

  EU Stage IIIA/U.S. EPA Tier 3, China NRIII
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  137 mm
- Piston Hareket Mesafesi

  171 mm
- Silindir Hacmi

  15.2 l
- Sıkıştırma Oranı

  18.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1377 mm
- Genişlik

  926 mm
- Yükseklik

  1226 mm
- Kuru Ağırlık

  1469 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Turbocharged aftercooled
Elektrik ve Elektronik
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system
Soğutma Sistemi
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Vertical outlet thermostat housing, centifugal water pump
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE0 and SAE1 configurations
Yakıt Sistemi
- Mechanical Unit Injector fuel system, controlled electronically
Yağlama Sistemi
- Choice of sumps for different applications
- Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
- Open crankcase ventilation system with fumes disposal (optional OCV filter system)
Power Take-Off (PTO)
- Engine power can also be taken from the front of the engine on some applications
- SAE1 power take-off available with optional SAE A, SAE B and SAE C power take-off drives

Özellİklere Genel Bakış

We have designed the Perkins 2000 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through 500 hour oil change intervals.

The Perkins 2000 range is suitable for the toughest operating conditions. Built in a world class manufacturing facility, and with proven core engine designs you can be assured of many hours of productive life.

Features built into the 2000 Range provide opportunities to reduce the cost of installation into your machine. With a compact package size of the engine, supported by multiple options available to support optimisation for your application. Supported by our expertise of application installations, the knowledge required to improve total integration is at all times you work with Perkins.
