PERKINS Endüstriyel Motorlar

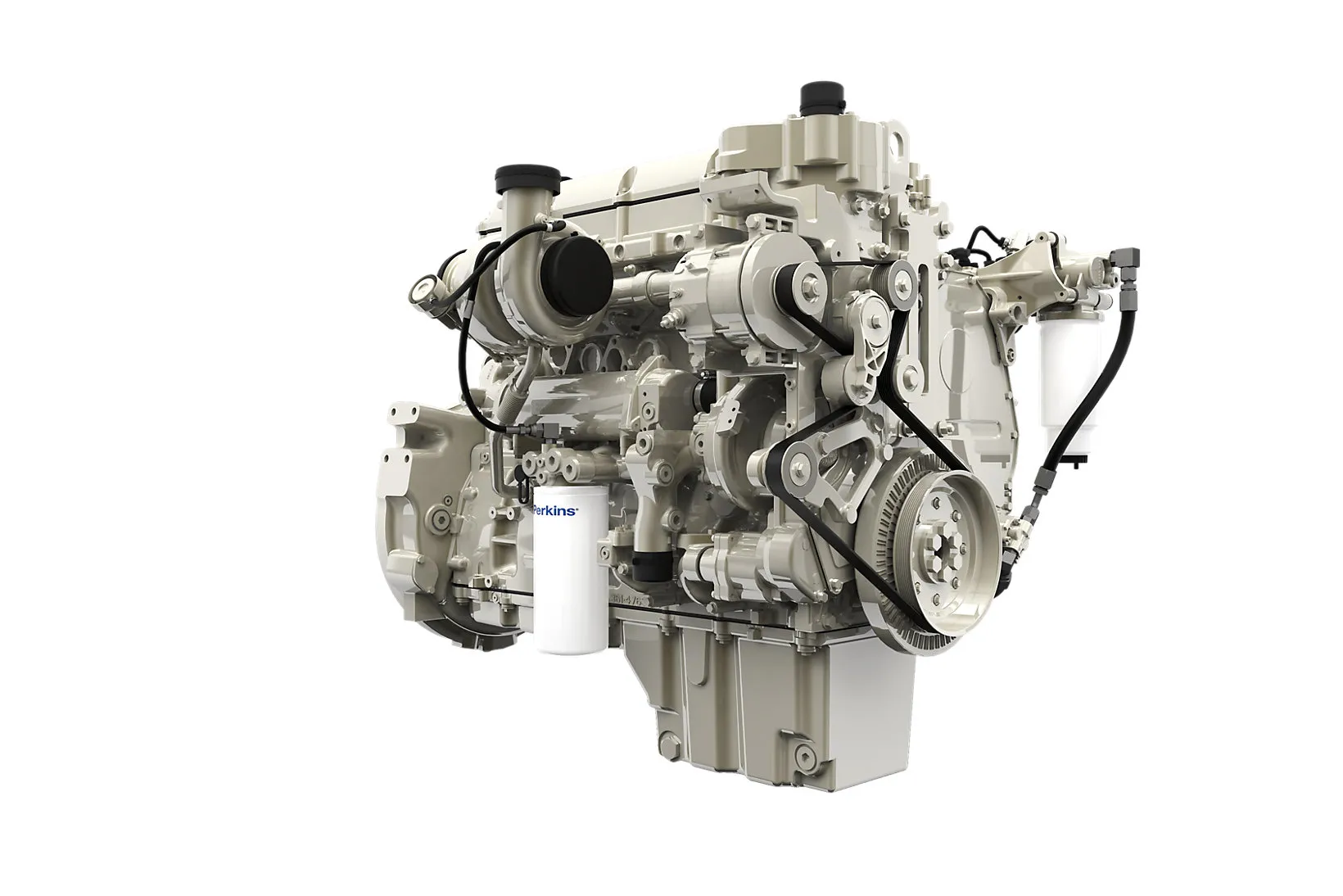

2406J-E13TA

Maksimum Güç

430 kW
Maksimum Tork

2634 Nm @ 1400 rpm
Emisyonlar

EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea tier 4 Final

Genel Bakış

The 2406J/EA-E13TA is a 6 cylinder, 12.5 litre engine capable of producing up to 430 kW (577 hp) of power and 2634 Nm (1943 lb-ft) of torque out of a compact, lightweight package. The 2406J-E13TA is certified to EU Stage V/U.S. EPA Tier 4 Final, along with Japan 2014 (Tier 4 Final) and Korea Stage V. The 2406EA-E13TA is certified to China Nonroad (NR) Stage IV. This simplifies the decision-making process for global customers by allowing them to standardise their worldwide product offering and reap the benefits of common installation, maintenance and service requirements from a single supplier solution.

2406J-E13TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  430 kW
- Maksimum Tork

  2634 Nm @ 1400 rpm
- Anma Hızı

  1800-2100 rpm
- Minimum Güç

  340 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA Tier 4 Final, Japan 2014, Korea tier 4 Final
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  130 mm
- Piston Hareket Mesafesi

  157 mm
- Silindir Hacmi

  12.5 l
- Sıkıştırma Oranı

  15.8:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1274 mm
- Genişlik

  994 mm
- Yükseklik

  1134 mm
- Kuru Ağırlık

  1125 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Egzoz Son İşlem Sistemi Equipment
- SCR Auxiliaries - A range of tanks and heated lines are available
Hava Sistemi
- Turbocharged aftercooled
Elektrik ve Elektronik
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system with all system functions controlled from a single, engine-mounted electronic control module
Soğutma Sistemi
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Vertical outlet thermostat housing, centifugal water pump
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE1 configurations
Yakıt Sistemi
- Mechanical Unit Injector fuel system, controlled electronically
- Industrial technology requires Ultra Low Sulphur Diesel fuel (ULSD, 15 ppm sulphur), in addition to ultra low sulphur diesel oils, for use in Tier 4 Final/Stage V engines. These cleaner fuels and oils will help reduce ash and maintain service intervals. In addition, B20 biodiesel capability adds even greater sustainability where desired or required
Yağlama Sistemi
- Choice of sumps for different applications
- Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
- Open crankcase ventilation system with fumes disposal (OCV filter option required for EU Stage V certification engines)
Power Take-Off (PTO)
- Engine power can also be taken from the front of the engine on some applications
- SAE1 power take-off available with optional SAE B and SAE C power take-off drives (dual rear)

Özellİklere Genel Bakış

A 6 cylinder, 12.5 litre engine with power up to 430 Nm and peak torque of 2640 Nm to enable engine downsizing.

Optimised design across all systems – fuel, air, electrical, thermal – driving efficiency and lowering total fluid consumption.

Perkins design technology and high-efficiency SCR enable a compact, lightweight aftertreatment with simple installation requirements.

Thermal management designed to provide transparent regeneration, without distraction to the operator or impact to machine performance.

Fully configurable product with factory solutions such as engine mounted aftertreatment and full power units to limit installation complexity.

The 2406J will be available in single label certification for EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 and Korea Tier 4 Final providing global customers a single source solution that streamlines design, installation and service processes.
