PERKINS Endüstriyel Motorlar

2206C-E13TA

Maksimum Güç

328 kW
Maksimum Tork

2010 Nm @ 1400 rpm
Emisyonlar

Emits equivalent to U.S. EPA Tier 2

Genel Bakış

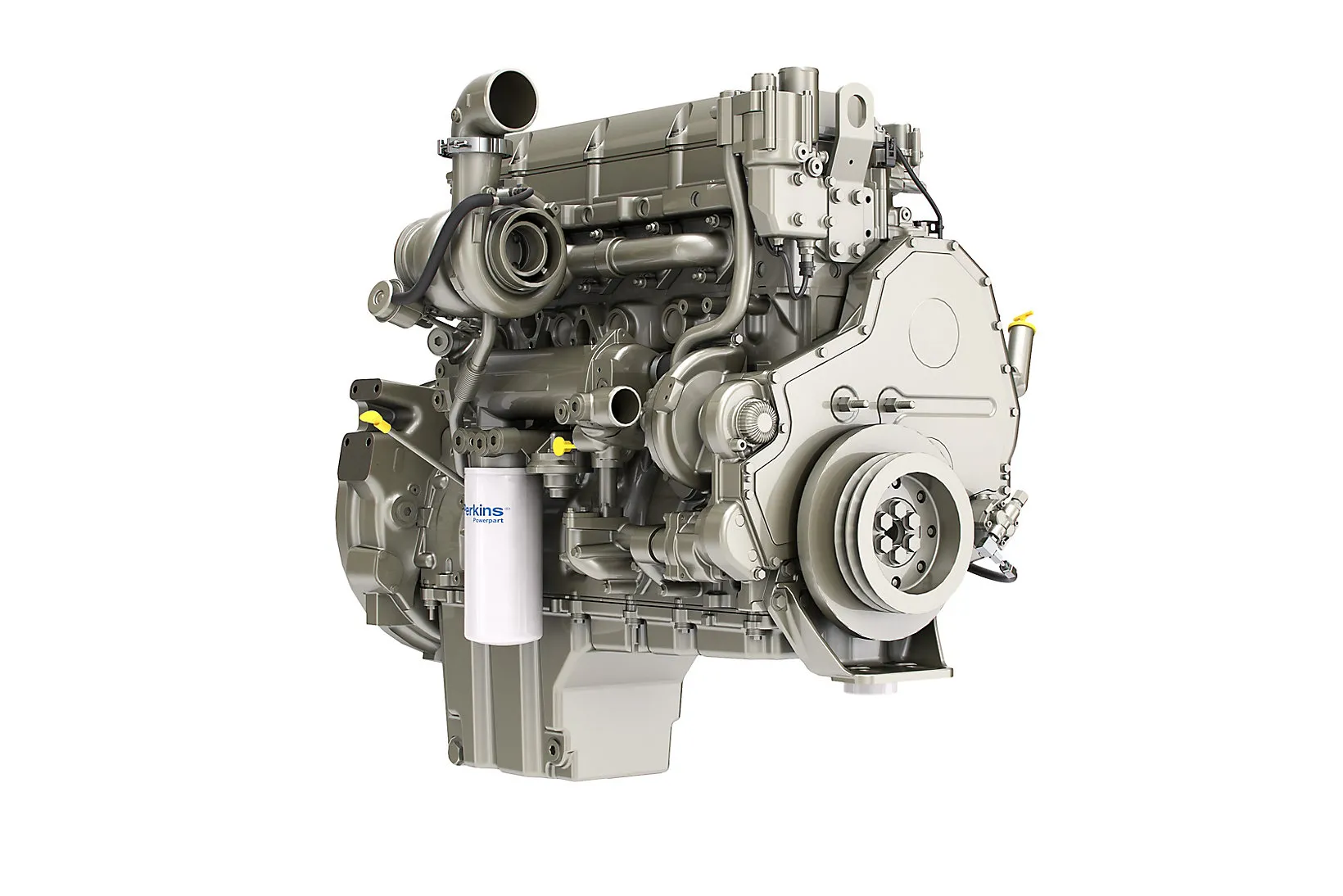

The Perkins® 2206C-E13TA is a 6 cylinder, 12.5 litre engine that produces up to 328 kW (440 hp) of power and 2010 Nm (1482 lb-ft) of torque out of a compact, lightweight package. The 2206C model emits equivalent to U.S. EPA Tier 2.

2206C-E13TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  328 kW
- Maksimum Tork

  2010 Nm @ 1400 rpm
- Anma Hızı

  1800-2100 rpm
- Minimum Güç

  309 kW
Emisyon Standartları
- Emisyonlar

  Emits equivalent to U.S. EPA Tier 2
Genel
- Silindir Sayısı

  6 vertical in-line
- Silindir Hacmi

  12.5 l
- Emme Tipi

  Turbocharged aftercooled
- Silindir Çapı

  130 mm
- Piston Hareket Mesafesi

  157 mm
- Yanma Sistemi

  Direct injection (MEUI)
- Sıkıştırma Oranı

  17.3:1 or 15.8:1
- Egzoz Son İşlem Sistemi

  None
- Toplam Yağ Kapasitesi

  40 l
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1295 mm
- Genişlik

  1054 mm
- Yükseklik

  1186 mm
- Kuru Ağırlık

  1138 kg
- Wet Weight

  1172 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.

Özellİklere Genel Bakış

Less regulated 2206 variants offer outstanding power density up to 32 kW/L (43 hp/L) and are designed to allow simple, dependable, and low-cost installations with a full range of configurable attachment option including installed radiators from the factory.

Fuel consumption has been optimised to match operating cycles of a wide range of equipment and applications, with capability of up to 500 hour oil change intervals, enabling low-cost maintenance.

The Perkins distributor network offers dedicated experience and knowledge of Perkins diesel engines and provides direct customer focus, protecting your assets through extended service contract options.
