PERKINS Endüstriyel Motorlar

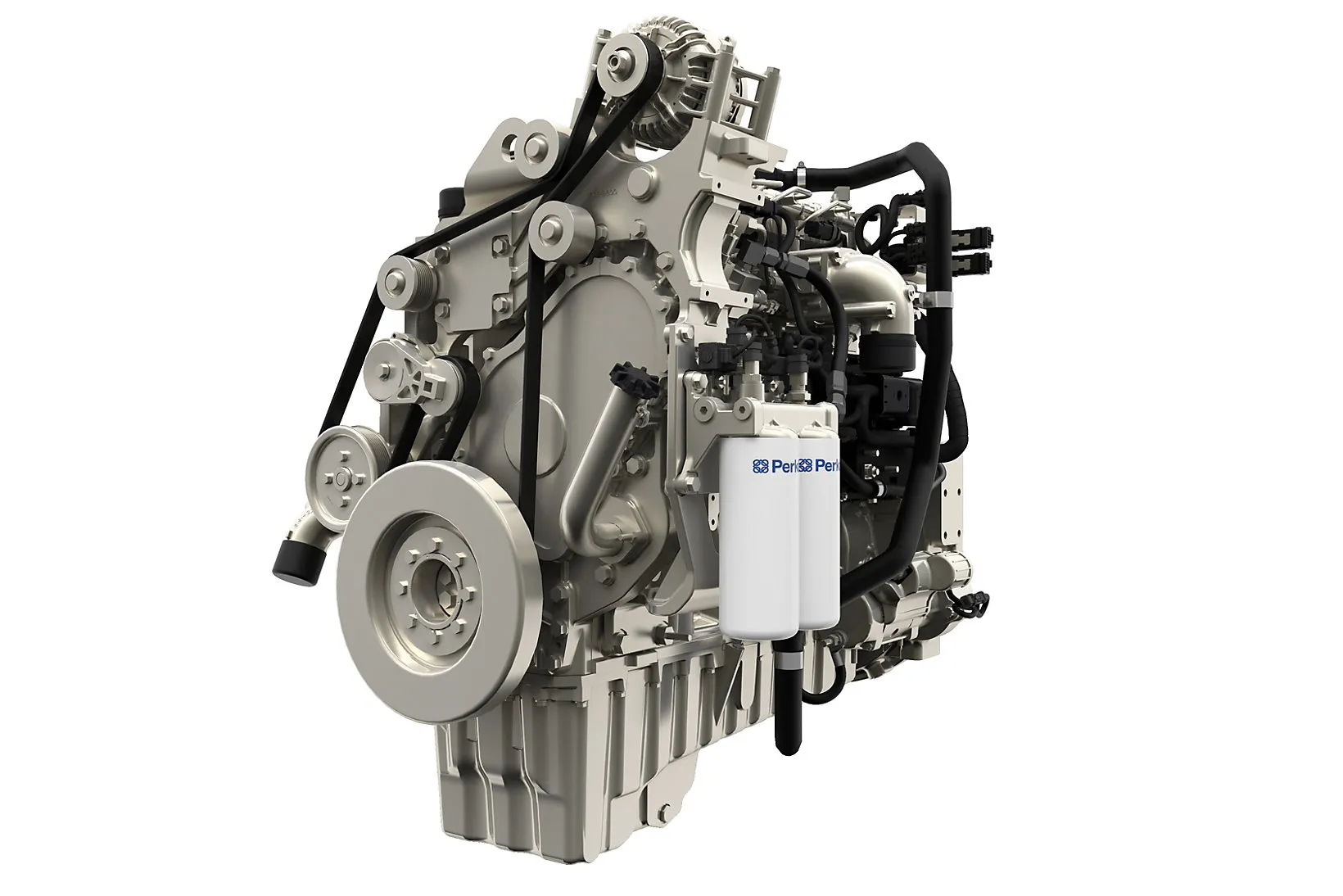

1706EA-E93TA

Maksimum Güç

340 kW
Maksimum Tork

2088 Nm @ 1400 rpm
Emisyonlar

China Nonroad Stage IV

Genel Bakış

The 1706J/EA-E93TA is a 6 cylinder, 9.3 litre engine that combines a high-pressure common rail fuel system and patented aftertreatment technology to produce up to 340 kW (456 hp) of power and 2088 Nm (1540 lb-ft) of torque out of a compact, lightweight package. The 1706J-E93TA is certified to EU StageV/U.S. EPA Tier 4 Final, and other equivalent certifications. The 1706EA-E93TA is certified to China Nonroad (NR) Stage IV. Identical performance across these certifications provides global customers a single source solution, streamlining design, installation, and service processes.

1706EA-E93TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  340 kW
- Maksimum Tork

  2088 Nm @ 1400 rpm
- Anma Hızı

  1800-2200 rpm
- Minimum Güç

  250 kW
Emisyon Standartları
- Emisyonlar

  China Nonroad Stage IV
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  115 mm
- Piston Hareket Mesafesi

  149 mm
- Silindir Hacmi

  9.3 l
- Sıkıştırma Oranı

  17.0:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1125 mm
- Genişlik

  791 mm
- Yükseklik

  1068 mm
- Kuru Ağırlık

  865 kg
Egzoz Son İşlem Sistemi Dimensions*
- Uzunluk

  925 mm
- Genişlik

  694 mm
- Yükseklik

  432 mm
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Turbocharged aftercooled
Elektrik ve Elektronik
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE 1939 CAN bus enables highly integrated machines
- Full electronic control system with all system functions controlled from a single, engine-mounted electronic control module (ECM)
Soğutma Sistemi
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Vertical outlet thermostat housing, centrifugal water pump
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE2 and SAE1 configurations
Yakıt Sistemi
- High pressure common rail fuel system
Yağlama Sistemi
- Choice of sumps for different applications
- Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
Power take-off
- Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C, or a combination
- Engine power can also be taken from the front of the engine on some applications
Yağlama Sistemi
- Open crankcase ventilation system with fumes disposal (optional OCV filter system)

Özellİklere Genel Bakış

We have designed the Perkins 1700 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through a minimum 5,000 hour service interval and 500 hour oil change intervals.

The Perkins 1700 range is built off a proven core, where it has been used in the toughest operating conditions. Built in a world class manufacturing facility, you can be assured of many hours of productive life. With an aftertreatment system that works when you need it to, you won't have to worry about any downtime impacting your days work.

The 1700 Series is designed for a simplified installation into your machine. With a compact and flexible after treatment system, you can rest assured that you can priorities the optimisation of your application layout for cost and usability, rather than to accommodate the engines components. Our power density reaches new levels on the 1700 Series, providing more opportunities to downsize and use a smaller displacement engine. With low heat rejection, your cooling pack size can be kept to a minimum, removing additional costs.
