PERKINS Endüstriyel Motorlar

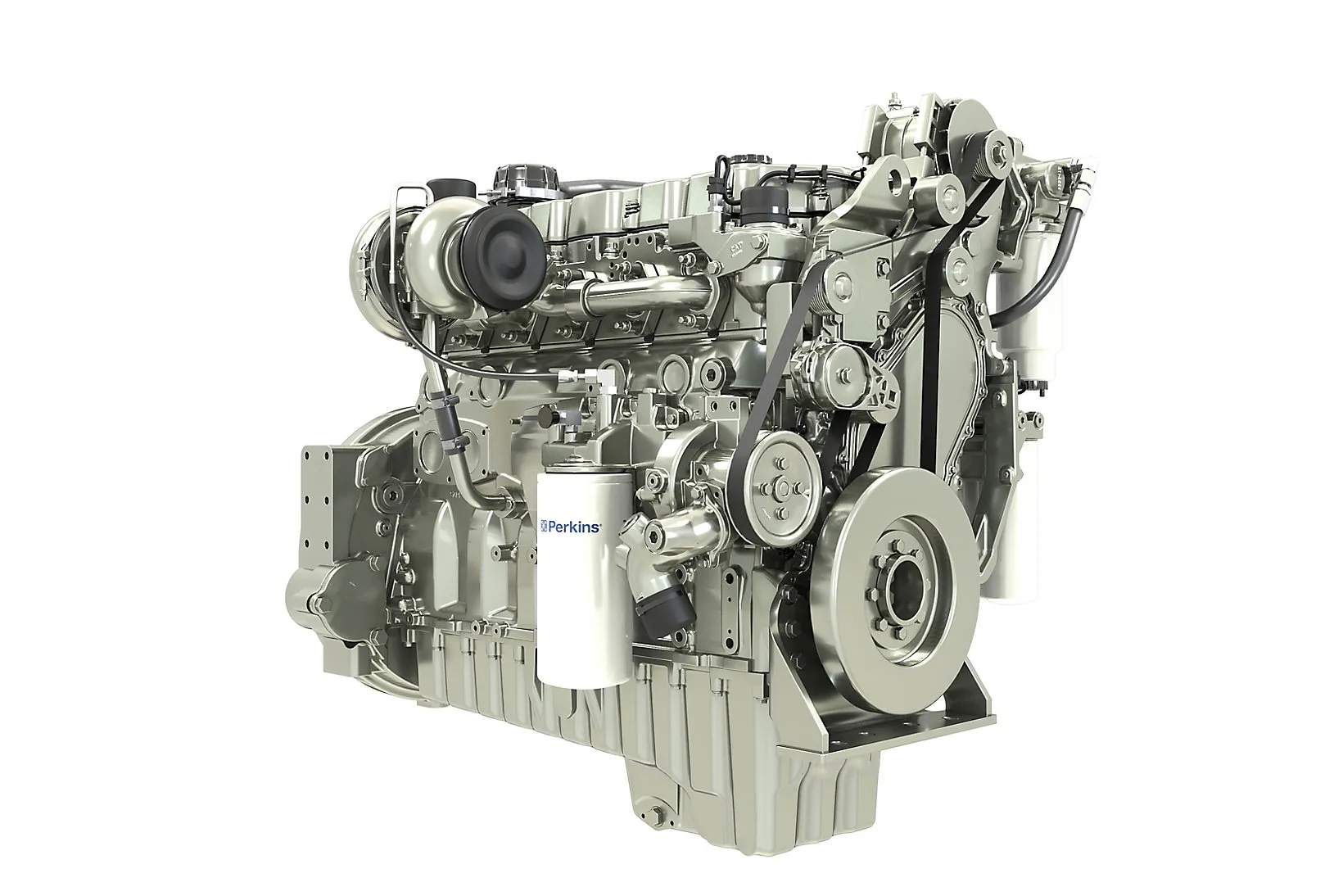

1706D-E93TA

Maksimum Güç

310 kW
Maksimum Tork

1810 Nm @ 1400 rpm
Emisyonlar

China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

Genel Bakış

The Perkins® 1706D-E93TA is a 6 cylinder, 9.3 litre engine that produces up to 310 kW (416 hp) of power and 1810 Nm (1335 lb-ft) of torque out of a compact, lightweight package. The 1706D model is a platform extension of the 1706J and meets China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards and UN R120 performance standard for measurement of net power and specific fuel consumption.

1706D-E93TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  310 kW
- Maksimum Tork

  1810 Nm @ 1400 rpm
- Anma Hızı

  1800-2200 rpm
- Minimum Güç

  230 kW
Emisyon Standartları
- Emisyonlar

  China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  115 mm
- Piston Hareket Mesafesi

  149 mm
- Silindir Hacmi

  9.3 l
- Sıkıştırma Oranı

  16.5:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1125 mm
- Genişlik

  791 mm
- Yükseklik

  1068 mm
- Kuru Ağırlık

  865 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Turbocharged aftercooled
Elektrik ve Elektronik
- All connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system with all system functions controlled from a single, engine-mounted electronic control module (ECM)
Soğutma Sistemi
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Vertical outlet thermostat housing, centifugal water pump
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE2 and SAE1 configurations
Yakıt Sistemi
- High Pressure Common rail fuel system
Yağlama Sistemi
- Choice of sumps for different applications
- Oil cooler, oil filler, oil filter, oil dipstick, oil pump (gear-driven)
Power Take-Off (PTO)
- Engine power can also be taken from the front of the engine on some applications
- Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C or combination.
Yağlama Sistemi
- Open crankcase ventilation system with fumes disposal (optional OCV filter system)

Özellİklere Genel Bakış

High power and torque density, providing the opportunity to downsize in engine displacement without sacrificing performance or reliability

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation and many hours of productive life

High power and torque density, providing the opportunity to downsize in engine displacement without sacrificing performance or reliability
