PERKINS Endüstriyel Motorlar

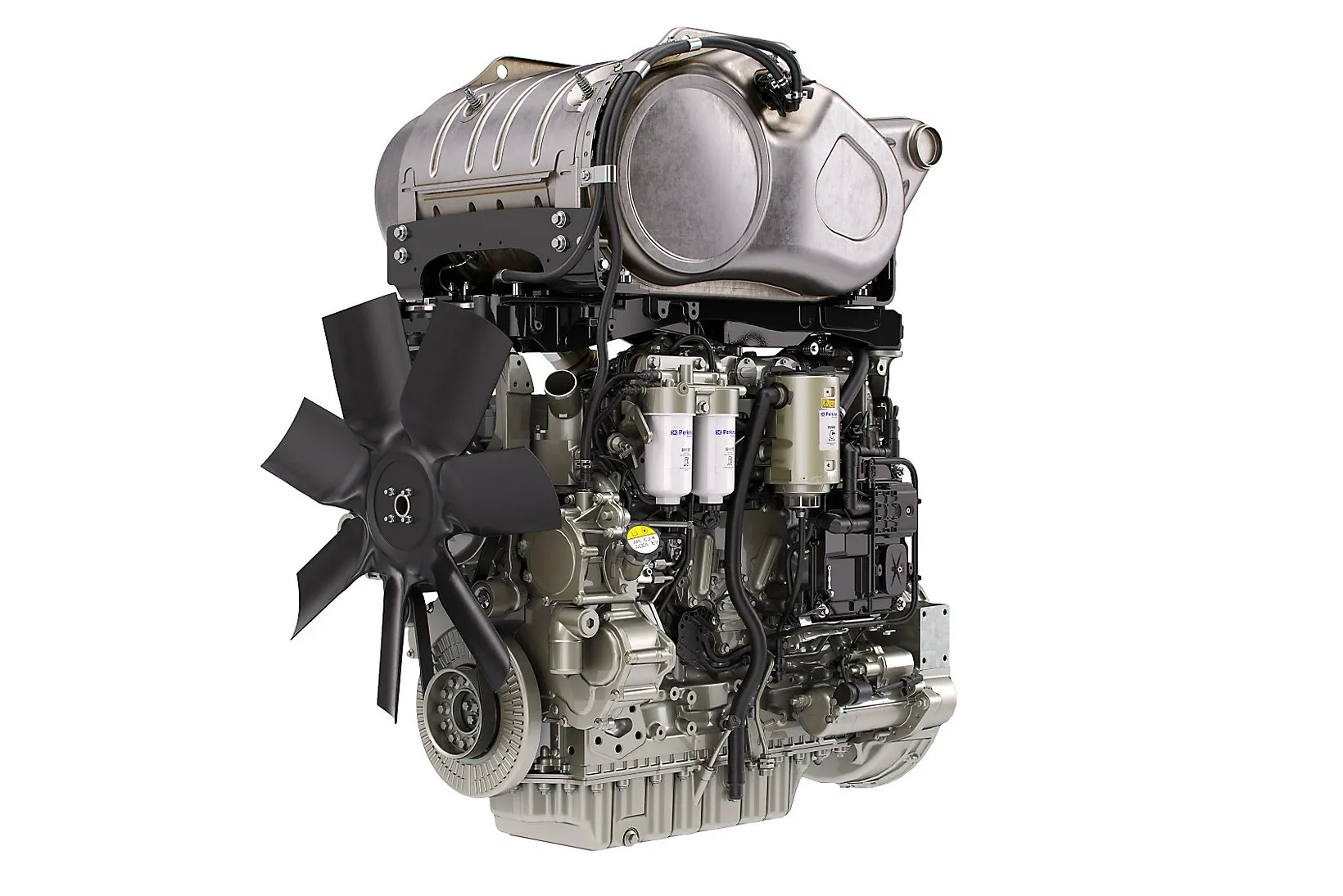

1206J-E70TTA

Maksimum Güç

239 kW
Maksimum Tork

1282 Nm @ 1400 rpm
Emisyonlar

EU Stage V, U.S. EPA & CARB Tier 4 Final

Genel Bakış

The 6 cylinder option for the Perkins 1200 Series, the 1206J gives you a complete power solution that is EU Stage V - ready. The choice of options, engine configurations and robust technology allows you to integrate the 1206 range into your equipment with minimum re-engineering.

1206J-E70TTA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  239 kW
- Maksimum Tork

  1282 Nm @ 1400 rpm
- Anma Hızı

  2200 rpm
- Minimum Güç

  151 kW
Emisyon Standartları
- Emisyonlar

  EU Stage V, U.S. EPA & CARB Tier 4 Final
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  135 mm
- Silindir Hacmi

  7 l
- Sıkıştırma Oranı

  16.5:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1047 mm
- Genişlik

  798 mm
- Yükseklik

  912 mm
- Kuru Ağırlık

  752 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Standard air cleaners
Elektrik ve Elektronik
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Soğutma Sistemi
- 50:50 water glycol mix
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Top tank temperature 108°C (226°F) as standard to minimize cooling pack size
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE No. 1, SAE No. 2 and SAE No. 3 configurations
Yakıt Sistemi
- Electronic high pressure common rail
Yağlama Sistemi
- Choice of sumps for different applications
Power Take-Off (PTO)
- SAE A or SAE B flanges on left-hand side. Right-hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.

Özellİklere Genel Bakış

The high power density and excellent torque in our 1206 range gives machine manufacturers the opportunity to use our 6 cylinder engine instead of a larger engine. Downsizing in this way can save you money and create more space to package new aftertreatment units. The 1206 range is an ideal engine solution for large and medium-sized machines for construction, agriculture, materials handling and general industrial applications.

Your needs are our top priority, which is why we provide more tailored technology than anyone else. Working closely with OEMs, we have developed the 1206 range with hundreds of variables so that it easily fits into your machine. Our 1206 range engines come with two year warranties as standard and can also be supported by extended service contracts. Building on more than 80 years of experience, the 1200 Series benefits from our engineering experience and heritage. Its improved productivity and fuel consumption reduces the total cost of ownership.
