PERKINS Endüstriyel Motorlar

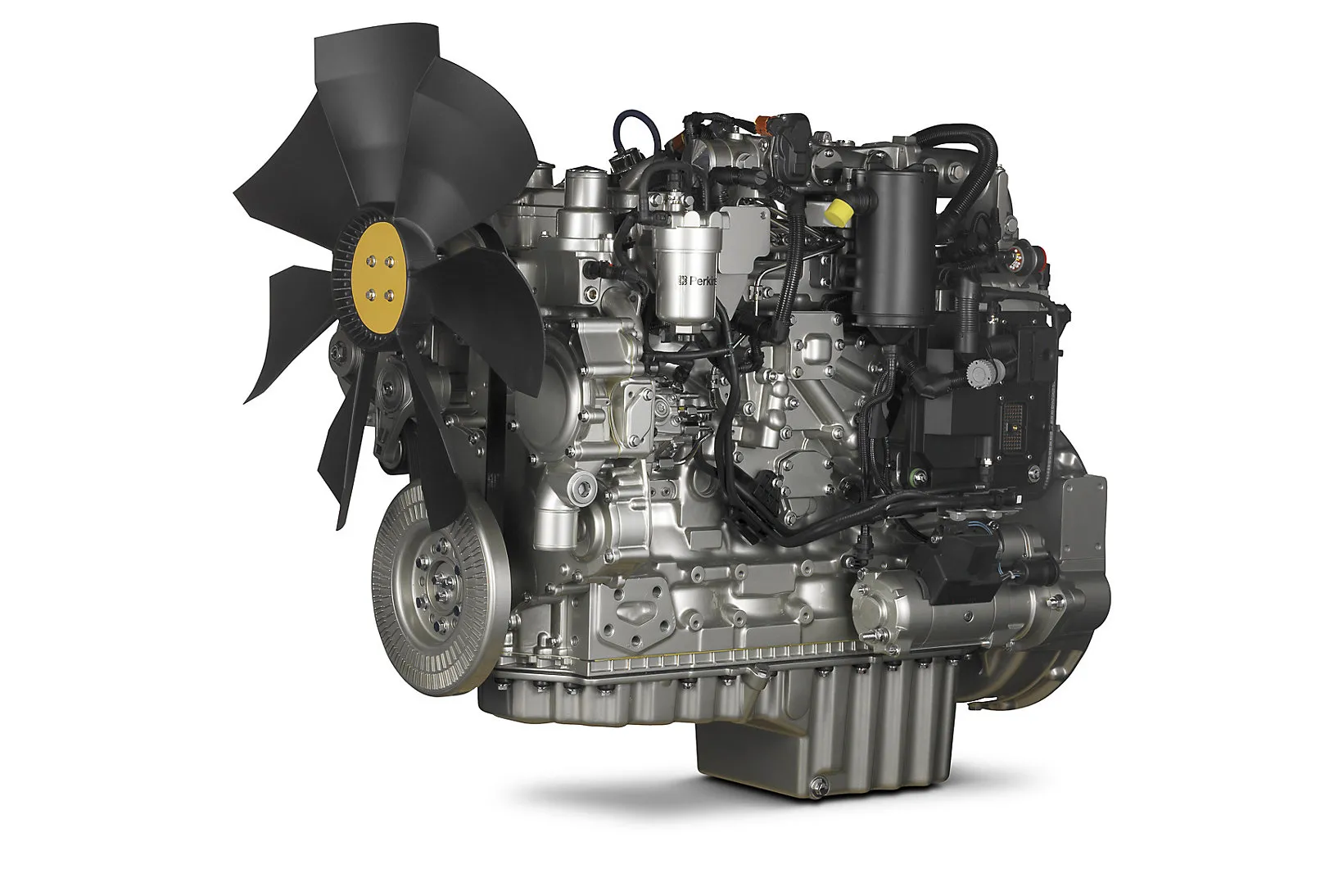

1206EA-E70TA

Maksimum Güç

151 kW
Maksimum Tork

870 Nm @ 1400 rpm
Emisyonlar

China NR IV

Genel Bakış

The 6 cylinder option for the Perkins 1200 Series, the 1206 gives you a complete power solution that meets China NR IV emission standards. The choice of options, engine configurations and robust technology allows you to integrate the 1206 range into your equipment with minimum re-engineering.1206EA-E70TA INDUSTRIAL ENGINE7.0 litre129-151 kW (174-202 hp)China NR IV emission standards.

1206EA-E70TA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  151 kW
- Maksimum Tork

  870 Nm @ 1400 rpm
- Anma Hızı

  1800-2200 rpm
- Minimum Güç

  129 kW
Emisyon Standartları
- Emisyonlar

  China NR IV
Genel
- Silindir Sayısı

  6 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  135 mm
- Silindir Hacmi

  7 l
- Sıkıştırma Oranı

  16.5:1
- Emme Tipi

  Turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF+SCR
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  1064 mm
- Genişlik

  755 mm
- Yükseklik

  904 mm
- Kuru Ağırlık

  714 kg
Egzoz Son İşlem Sistemi Dimensions*
- Uzunluk

  420 mm
- Diameter

  266 mm
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Egzoz Son İşlem Sistemi Equipment
- 3" flex pipe connection kit with rotatable elbow for 60° and 90° RS inlet flexibility
- SCR - Selective Catalytic Reduction
Hava Sistemi
- Standard air cleaners
Soğutma Sistemi
- 50:50 water glycol mix
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Top tank temperature 108°C (226°F) as standard to minimize cooling pack size
Elektrik ve Elektronik
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, SAE1, SAE2 and SAE3 configurations
Yakıt Sistemi
- Electronic high pressure common rail
Yağlama Sistemi
- Choice of sumps for different applications
Power Take-Off (PTO)
- SAE A or SAE B flanges on left-hand side. Right-hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications.
- Factory fitted compressors are also available.

Özellİklere Genel Bakış

Like you, we believe there is no need for a trade-off between meeting emission standards and delivering on performance. The 1200 Series™ tackles the emissions challenge head-on and gives you improved productivity levels and fuel consumption.

The high power density and excellent torque in our 1206 range gives machine manufacturers the opportunity to use our 6 cylinder engine instead of a larger engine. Downsizing in this way can save you money and create more space to package new aftertreatment units. The 1206 range is an ideal engine solution for large and medium-sized machines for construction, agriculture, materials handling and general industrial applications.

Your needs are our top priority, which is why we provide tailored technology solutions. Working closely with OEMs, we have developed the 1206 range with hundreds of variables so that it easily fits into your machineOur 1206 range engines come with two year warranties as standard and and can also be supported by extended service contractsBuilding on more than 80 years of experience, the 1200 Series benefits from our engineering experience and heritage. Its improved productivity and fuel consumption reduces the total cost of ownership.
