PERKINS Endüstriyel Motorlar

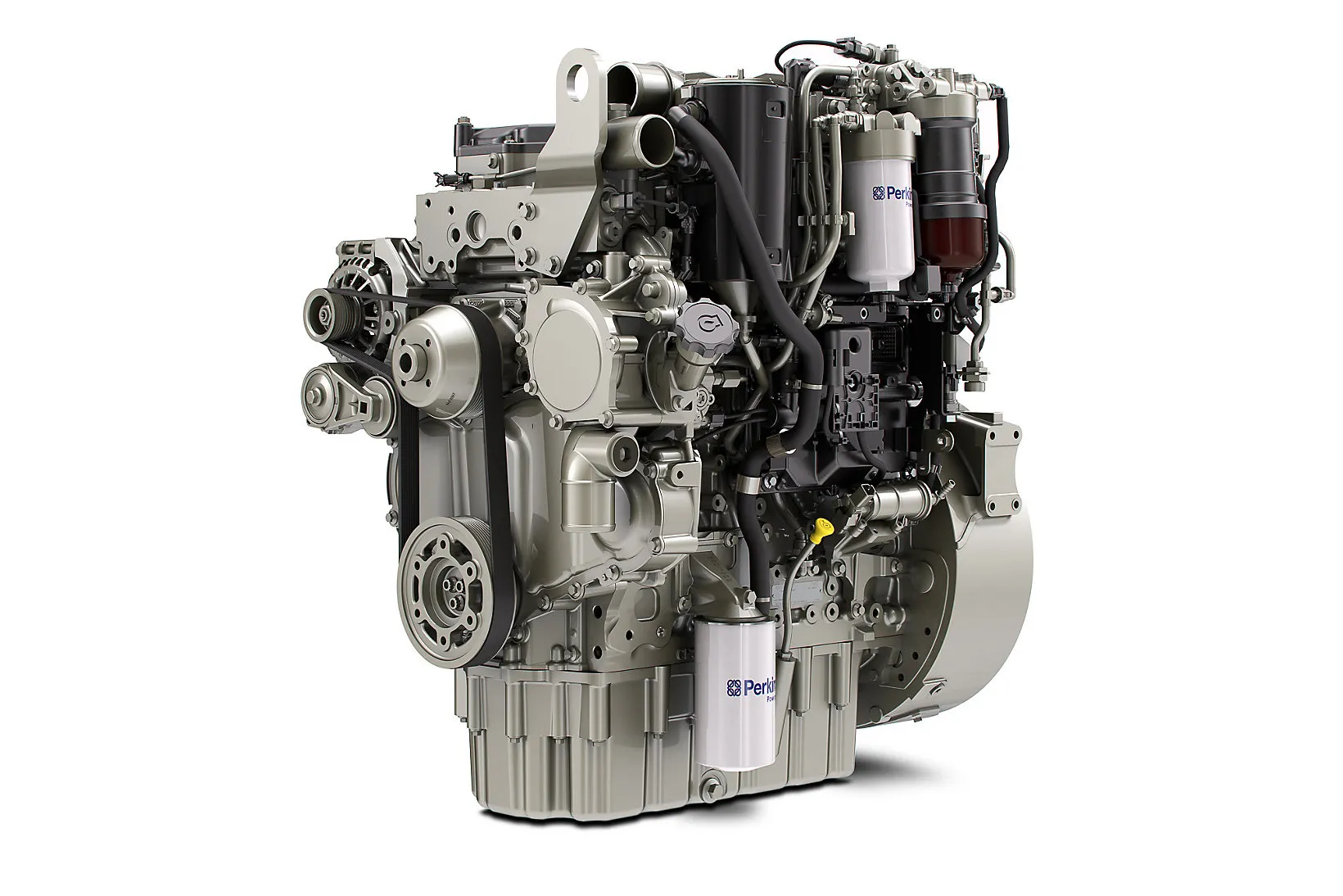

1204EA-E44TTA

Maksimum Güç

129 kW
Maksimum Tork

750 Nm @ 1400 rpm
Emisyonlar

China NR IV

Genel Bakış

The Perkins 1204, the 4 cylinder option for the 1200 Series TM, gives you a complete power solution that meets the latest China NR IV emission standards. The choice of options, engine configurations and robust technology allows you to integrate the 1204 range into your equipment with minimum re-engineering.
The innovative, compact and flexible design of the Perkins 1200 Series means it can be found in more than 800 different models of equipment.

1204EA-E44TTA Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  129 kW
- Maksimum Tork

  750 Nm @ 1400 rpm
- Anma Hızı

  2000-2200 rpm
- Minimum Güç

  105 kW
Emisyon Standartları
- Emisyonlar

  China NR IV
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  127 mm
- Silindir Hacmi

  4.4 l
- Sıkıştırma Oranı

  16.5:1
- Emme Tipi

  Series turbocharged aftercooled
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  DOC+DPF
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  822 mm
- Genişlik

  748 mm
- Yükseklik

  897 mm
- Kuru Ağırlık

  535 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Standard air cleaners
Elektrik ve Elektronik
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Soğutma Sistemi
- 50:50 water glycol mix
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Top tank temperature 108°C (226°F) as standard to minimize cooling pack size
Volan ve Volan Muhafazası
- Wide choice of drivetrain interfaces, including SAE No. 2 and SAE No. 3 configurations
Yakıt Sistemi
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Genel
- Available with or without a balancer
Yağlama Sistemi
- Wide choice of sumps for different applications
Power Take-Off (PTO)
- SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.

Özellİklere Genel Bakış

We have designed the Perkins 1204 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications.Low cost maintenance is achieved through hydraulic tappets, multi-vee belts, service free aftertreatment and 500 hour oil change intervals.

High power density, combined with excellent torque in the 1204 range allows you to select a more compact engine where previously you might have used an engine of a higher cubic capacity. This downsizing has several benefits, including saving you money and providing more space to package aftertreatment units.

Your needs are our top priority, which is why we provide more tailored technology than anyone else. Working closely with OEMs, we have developed the 1204 range with hundreds of options so that it easily fits into your machine.

Our 1204 range engines come with two year warranties as standard and can also be supported by extended service contracts.
