PERKINS Endüstriyel Motorlar

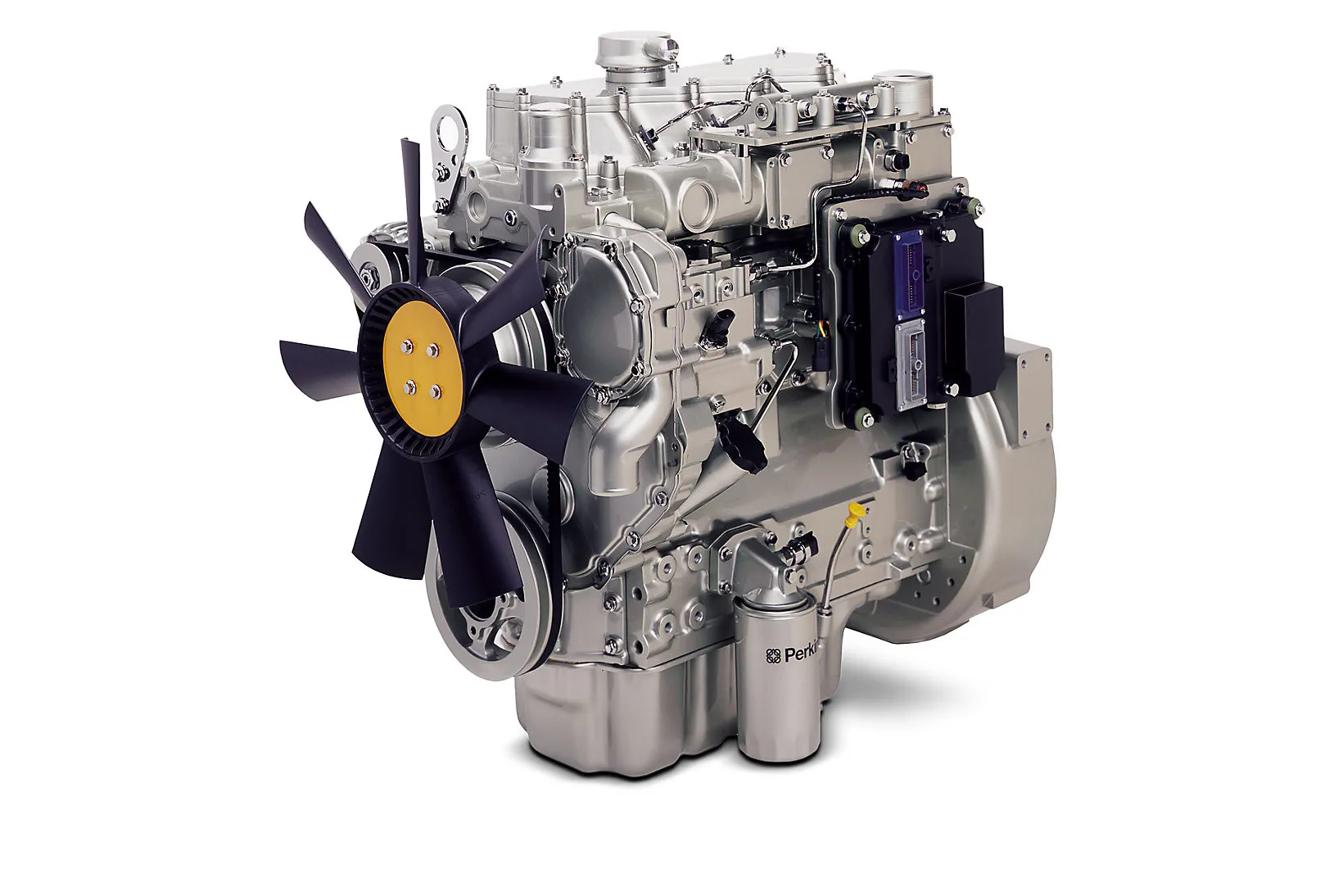

1104D-E44T

Maksimum Güç

74.5 kW
Maksimum Tork

420 Nm @ 1400 rpm
Emisyonlar

UN ECE R96 Stage IIIA, China Nonroad Stage III

Genel Bakış

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

1104D-E44T Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  74.5 kW
- Maksimum Tork

  420 Nm @ 1400 rpm
- Anma Hızı

  2200 rpm
- Minimum Güç

  68 kW
Emisyon Standartları
- Emisyonlar

  UN ECE R96 Stage IIIA, China Nonroad Stage III
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  127 mm
- Silindir Hacmi

  4.4 l
- Sıkıştırma Oranı

  16.9:1
- Emme Tipi

  Turbocharged
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  631 mm
- Genişlik

  647 mm
- Yükseklik

  823 mm
- Kuru Ağırlık

  360 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Air compressor
- Exhaust manifold
- Induction manifold
Elektrik ve Elektronik
- Alternator
- Control panel
- Starter motor
Soğutma Sistemi
- Cooling pack
- Fan drive and location
Volan ve Volan Muhafazası
- Adaptor plate
- Flywheel and starter ring
Yakıt Sistemi
- Fuel filter
Genel
- Cold start aid
- Engine mountings
Yağlama Sistemi
- Lubricating oil filter and breather
- Oil filter positions
Power Take-Off (PTO)
- SAE B PTO drive
- Timing case and gear driven auxiliaries
- Belt driven auxiliaries
- Front end drive

Özellİklere Genel Bakış

A robust electronically controlled common rail engine provides the opportunity to increase power and performance, whilst maintaining displacement volume, and still achieving emissions standards. It uses advanced common rail, fuel pump and injectors, combined with the latest high capacity fuel filtration to provide an engine which is reliable when used with varying standards of fuel around the world. With an electronic control and high pressure common rail system, the engine can be integrated fully into the machine, delivering smoother operation for the user, faster response and providing operator feedback on engine performance.

The 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooled it offers the best combination of power delivery and response.

All of the engines have 500 hour service intervals. And single side service components, for ease of end user servicing.

Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.
