PERKINS Endüstriyel Motorlar

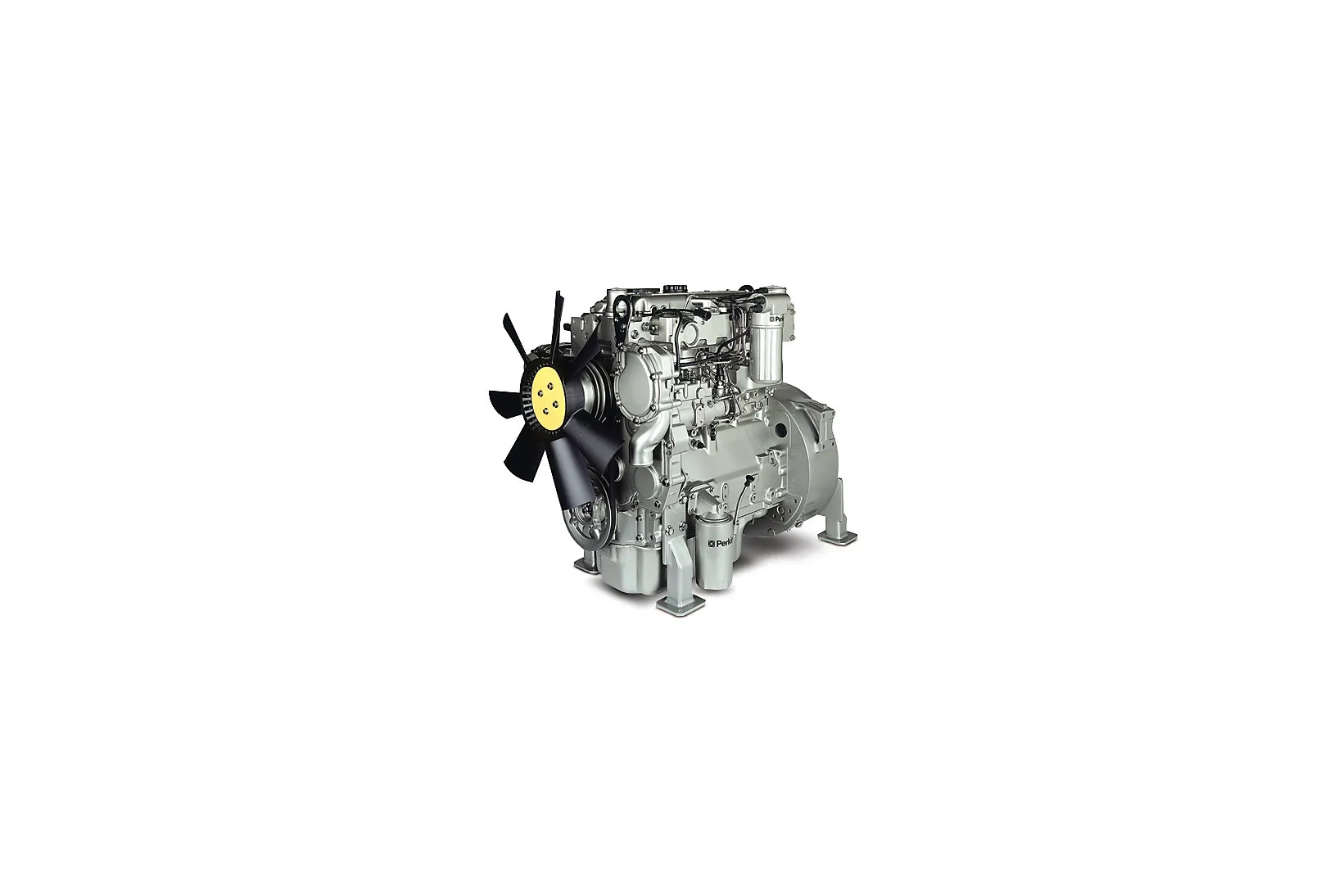

1104C-44T

Maksimum Güç

74.5 kW
Maksimum Tork

415 Nm @ 1350 rpm
Emisyonlar

EU Stage II/U.S. EPA Tier 2 equivalent

Genel Bakış

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

1104C-44T Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  74.5 kW
- Maksimum Tork

  415 Nm @ 1350 rpm
- Anma Hızı

  2300 rpm
- Minimum Güç

  62 kW
Emisyon Standartları
- Emisyonlar

  EU Stage II/U.S. EPA Tier 2 equivalent
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  127 mm
- Silindir Hacmi

  4.4 l
- Sıkıştırma Oranı

  18.2:1
- Emme Tipi

  Turbocharged
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  663 mm
- Genişlik

  597 mm
- Yükseklik

  810 mm
- Kuru Ağırlık

  372 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Cast iron exhaust manifold – centre side outlet
- Integral inlet manifold
- Turbo outlet orientation
Elektrik ve Elektronik
- 12 and 24 volt alternator 55, 65, 85, 100 amp
- 12 and 24 volt starter motor
Soğutma Sistemi
- Cooling fan
- Gear driven coolant pump
- Water outlet
Yakıt Sistemi
- Plastic J2044 fuel system standard
Genel
- Balancer or non-balancer
- Cast iron engine block
- Choice of filler positions
- Glow plug starting aid
Yağlama Sistemi
- Dipstick (left or right position)
- Lubricating oil sump
Power Take-Off (PTO)
- Provision for PTOs

Özellİklere Genel Bakış

The 1100 Series range of engines have been specifically designed for use in territories with Stage II/IIIA and Tier 2/3 equivalent emissions standards, using the best technologies to ensure a reliable and easy to maintain machine. With a choice of naturally aspirated, turbocharged and turbocharged aftercooled it offers the best combination of power delivery and response.

All of the engines have 500 hour service intervals. And single side service components, for ease of end user servicing.

Common front and rear ends, connection points and components across the range mean that you can easily install a different 1100 Series engine in your application.

With our network of distributors, you will find all the advice you need to ensure you get the right engine. By building strong relationships with you, we make sure you have access to the full power of the Perkins brand and expertise. Our fully trained experts deliver total service support 24/7, 365 days of the year. Whether you need technical information, parts identification or ordering, our distribution network is there to make sure your Perkins engine keeps on running at peak performance.

The high quality oil and fuel filtration on our 1100 Series range produces an engine that is reliable and durable. Ecoplus fuel filtration is available to boost its clean running qualities and the engine is capable of running on a wide range of global fuels including biodiesel.
