PERKINS Endüstriyel Motorlar

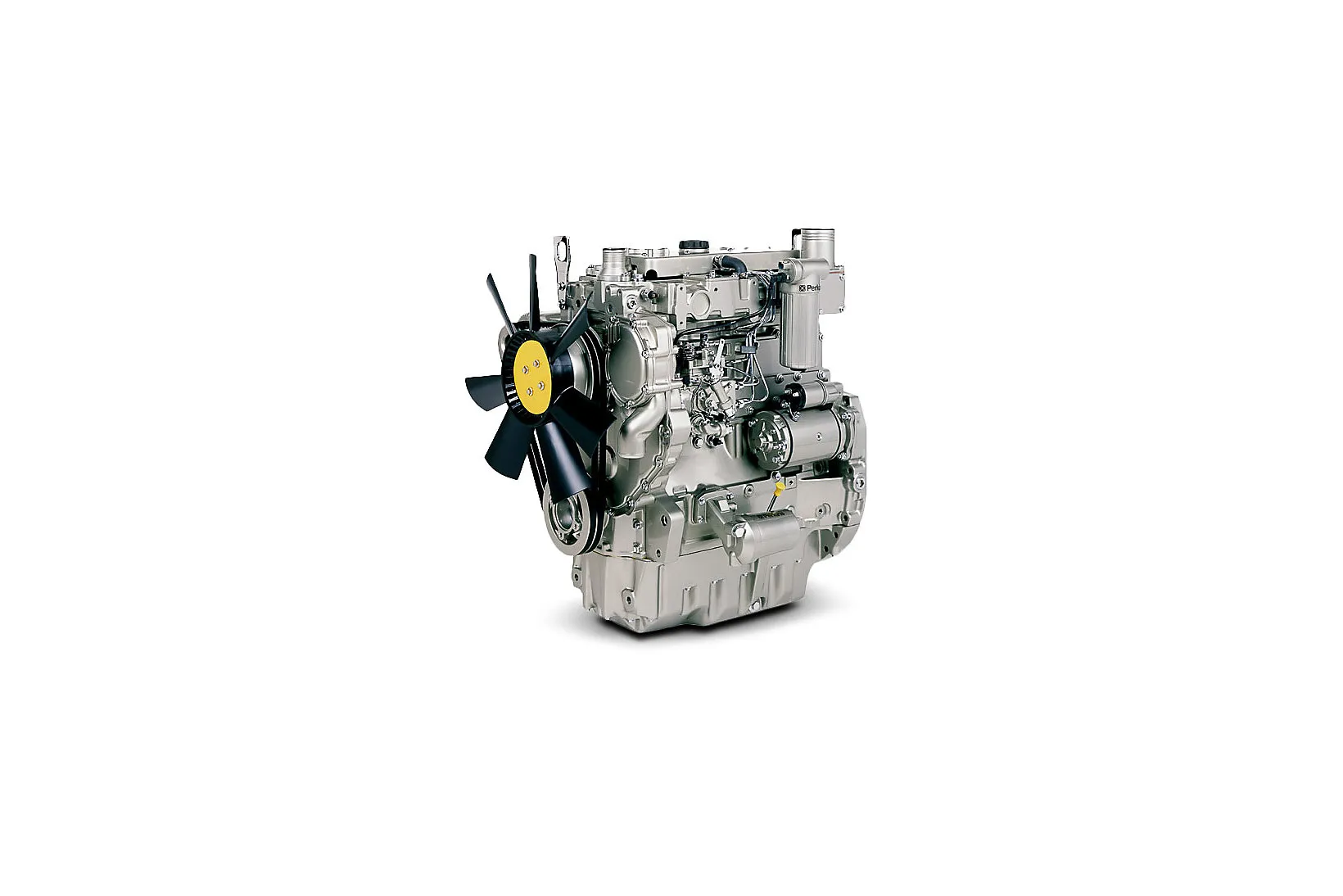

1104C-44

Maksimum Güç

64 kW
Maksimum Tork

308 Nm @ 1200 rpm
Emisyonlar

EU Stage II/U.S. EPA Tier 2 equivalent

Genel Bakış

Whatever your application, there's an 1104 engine for you. Part of the Perkins 1100 Series, the range's 4 cylinder, 4.4 litre engines are smooth and quiet in operation. Designed to meet EU Stage II/IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards, the 1104 range offer a choice of mechanical or electronically controlled common rail engines. Electronically controlled engines deliver the right fuel injection for the load applied to the engine. Common front and rear ends, connection points and components across the range, making it easy to install a different 1100 Series engine in your application.

1104C-44 Ürün Özellikleri

Güç Değeri
- Maksimum Güç

  64 kW
- Maksimum Tork

  308 Nm @ 1200 rpm
- Anma Hızı

  2400 rpm
- Minimum Güç

  50 kW
Emisyon Standartları
- Emisyonlar

  EU Stage II/U.S. EPA Tier 2 equivalent
Genel
- Silindir Sayısı

  4 inline
- Çevrim

  4 stroke
- Silindir Çapı

  105 mm
- Piston Hareket Mesafesi

  127 mm
- Silindir Hacmi

  4.4 l
- Sıkıştırma Oranı

  19.3:1
- Emme Tipi

  Naturally aspirated
- Yanma Sistemi

  Direct injection
- Volan Tarafından Dönüş Yönü

  Anti-clockwise
- Egzoz Son İşlem Sistemi

  -
- Soğutma Sistemi

  Liquid
Motor Boyutları*
- Uzunluk

  663 mm
- Genişlik

  470 mm
- Yükseklik

  812 mm
- Kuru Ağırlık

  357 kg
Sorumluluk Reddi
- Note 1

  *Nihai boyutlar, seçilen opsiyonlara bağlıdır.
Hava Sistemi
- Cast iron exhaust manifold – centre side outlet
- Integral inlet manifold
- Turbo outlet orientation
Elektrik ve Elektronik
- 12 and 24 volt alternator 55, 65, 85, 100 amp
- 12 and 24 volt starter motor
Soğutma Sistemi
- Cooling fan
- Gear-driven coolant pump
- Water outlet
Yakıt Sistemi
- Plastic J2044 fuel system standard
Genel
- Cast iron engine block
- Balancer or non-balancer
- Glow plug starting aid
Yağlama Sistemi
- Lubricating oil sump
- Dipstick (left or right position)
Power Take-Off (PTO)
- Provision for PTOs
